"Electric power is everywhere present in unlimited quantities ...""Electric power is everywhere present in unlimited quantities and can drive the world's machinery without the need of coal, oil, gas ...""Electric power is everywhere present in unlimited quantities and can drive the world's machinery without the need of coal, oil, gas, or any other of the common fuels."Nikola Tesla c. 1900
ESTC 2019, the Energy, Science, and Technology Conference[1], included a presentation and working demonstration by Eric Dollard on Tesla’s Colorado Springs experiment[2] (TCS), which is available through A & P Electronic Media[3,4]. Due to unforseen circumstances relating to the demonstration co-worker, the generator for this experiment was unavailable after the demonstration for additional experimentation, investigation, and follow-up demonstrations. In agreement with Eric Dollard I suggested that the spark gap generator from the Vril Science Multiwave Oscillator Product[5], (MWO), could be adapted, tuned, and applied to the Colorado Springs experiment, and in order to facilitate ongoing investigation and experimentation throughout the conference period. What follows in this post is the story of how this successful endeavour unfolded in the form of videos, pictures, measurements, and of course the final results.
The first video below shows highlights from the endeavour, video footage was recorded and supplied by Paul Fraser, and reproduced here with permission from A & P Electronic Media.
The second video below shows highlights from the impedance measurements part of the endeavour, video footage again by Paul Fraser, and by Raui Searle.
Figures 1 below show a range of pictures of the original transmitter and receiver setup from Eric Dollard’s TCS demonstration, including the generator used to power the experiment, and key results from the original demonstration. The red “transmitter” coil (RTC) was subsequently modified after the demonstration, (secondary coil re-wound, and with a single copper strap primary), in order to work well with the MWO spark gap generator. The green “receiver” coil (GRC) was left un-modified for the purpose of the endeavour, although it could be fine tuned using the extra coil telescopic extension. Ultimately for on-going experiments using the MWO generator, the GRC would be re-wound and adapted to more closely match the RTC.

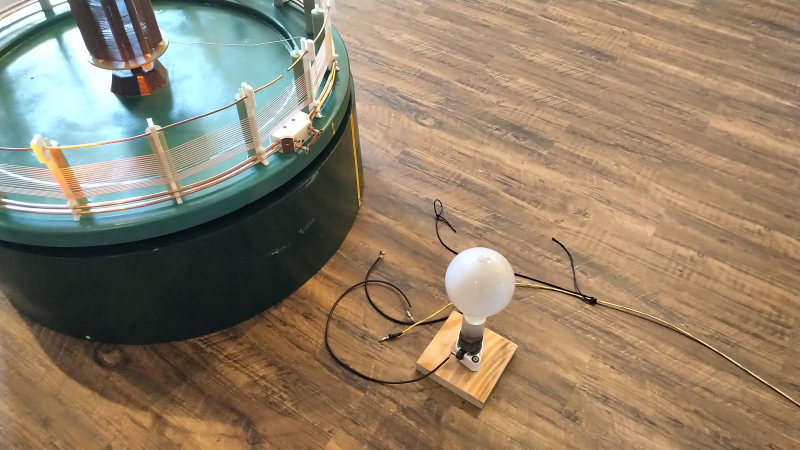

Fig. 1.1 The coil arrangement for the TCS demonstration by Eric Dollard, showing both the red transmitter coil and the green receiver coil.
Fig. 1.2 The red transmitter coil showing the general arrangement of the primary, secondary, and the extra coil.
Fig. 1.3 The generator is connected to the primary via a balanced transmission line, and the secondary is connected to the green receiver coil via an rf ammeter.
Fig. 1.4 The receiver load is a 500W incandescent light bulb, connected to the primary of the receiver coil. The receiver is connected by a single wire to the transmitter.
Fig. 1.5 The linear amplifier is a 1000W Denton Clipperton-L, and is connnected to the red transmitter coil via a matching unit.
Fig. 1.6 The linear amplifier output matching unit is in itself a tuned resonant transformer, which matches the output of the amplifier on the 160m band to the much lower impedance of the primary in the MW band.
Fig. 1.7 The output of the matching unit is via variable high voltage tuning capacitors in parallel with the output coil.
Fig. 1.8 The input to the matching unit is via a balanced transmission line to a tuned vacuum capacitor, and in parallel with the twin series connected input coils.
Fig. 1.9 The signal source for the linear amplifier is from an ICOM 7300 amateur radio receiver, modified to transmit on the MW band at 848.4kc/s.
Fig. 1.10 The Denton linear amplifier has no matching input network, hence a matching unit is required between the ICOM 7300 transceiver and the amplifier.
Fig. 1.11 All parts of the system connected together prior to the beginning of the demonstration.
Fig. 1.12 Last minute tuning checks by Eric Dollard prior to turning up the power for music transmission to the green receiver via the MW band.
Fig. 1.13 Checking for a null point between the transmitter and the receiver using a domestic flourescent tube to indicate the local electric field strength.
Fig. 1.14 Investigating the field around the extra coil extension using a helium-neon tube.
Fig. 1.15 Transmission of electric power from the transmitter to the receiver via a single wire, and lighting fully a 500W incandescent bulb.
The original TCS demonstration was powered by a 1000W linear amplifier generator being driven at ~ 800W output to light a 500W incandescent bulb at the receiver primary, and where the electric power is transferred between the RTC and GRC by a single wire. The TCS demonstration with both coils fully configured and connected to the generator was tuned to a drive frequency of 848.4 kc/s, as can be seen in fig. 1.9 as the selected frequency of the transceiver.
The transceiver is an ICOM-7300 which must have been modified to allow transmit on all frequencies, a modification that allows a radio amateur transceiver to generate a transmit signal outside of the designated amateur bands. This kind of modification turns a transceiver into a powerful bench top signal generator, with full modulation capabilities, and matched output powers from the transceiver alone of up to 100W in the MF and HF bands (300kc/s – 30Mc/s). 848 kc/s is in the MW (MF) radio broadcast band, and amplitude modulation is well suited here for the transmission of voice and music signals, as was also demonstrated in the original experiment.
The ICOM transceiver is connected via a matching unit to the Denton linear amplifier. This specific brand and model of linear amplifier has no matching unit at its input, which is why external matching is required from the ICOM 50Ω output to the lower impedance Denton input. The passive matching unit is shown in fig. 1.10, and also in the schematic of fig. 2.1.
The Denton Clipperton-L is a linear amplifier using 4 x 572B vacuum tubes with a band selected matching unit at its output, and a total output peak voltage of ~ 500V. The lowest band provided internally for matching at the output of the amplifier is the HF 160m band at ~ 1.8Mc/s. The much lower MW signal at 848kc/s would need additional matching and balancing between the amplifier output and the input to the primary of the RTC, (the output of the amplifier is an unbalanced feed e.g. coaxial, whereas the connecting transmission line and the primary are better fed with a balanced feed). The amplifier passive matching unit is shown in figures 1.6 – 1.8, and is also shown in the schematic of fig. 2.1.
The various different experiments conducted in the original demonstration included the following:
Fig 1.13. Shows Eric Dollard finding the null electric field region between the RTC and GRC, and using a 6′ domestic fluorescent tube light.
Fig 1.14. Shows Eric Dollard testing the field surrounding the RTC extra coil extension top load, using a helium-neon gas filled tube.
Fig 1.15. Shows single wire transmission of electric power, and fully lighting a 500W incandescent light bulb at the primary of the GRC.
Figures 2 below show the schematics for both the linear amplifier generator and coil arrangement for Eric Dollard’s original TCS demonstration, and a second schematic for the TCS experiment retune using the MWO spark gap generator. The high-resolution versions can be viewed by clicking on the following links TCS Demonstration, and TCS Retune.
Fig. 2.1 Schematic diagram for the TCS demonstration by Eric Dollard, showing the generator, matching units, and coil arrangements.
Fig. 2.2 Schematic diagram for the TCS retune by Adrian Marsh & Eric Dollard, showing the MWO generator, tuning capacitors, and modified coil arrangements.
Figures 3 below show the small signal impedance measurements for Z11 for the TCS coils, and also the tuning measurements for the coils and spark gap generator together, which were taken throughout the endeavour and used to ensure a well tuned match between the generator and the TCS experiment.

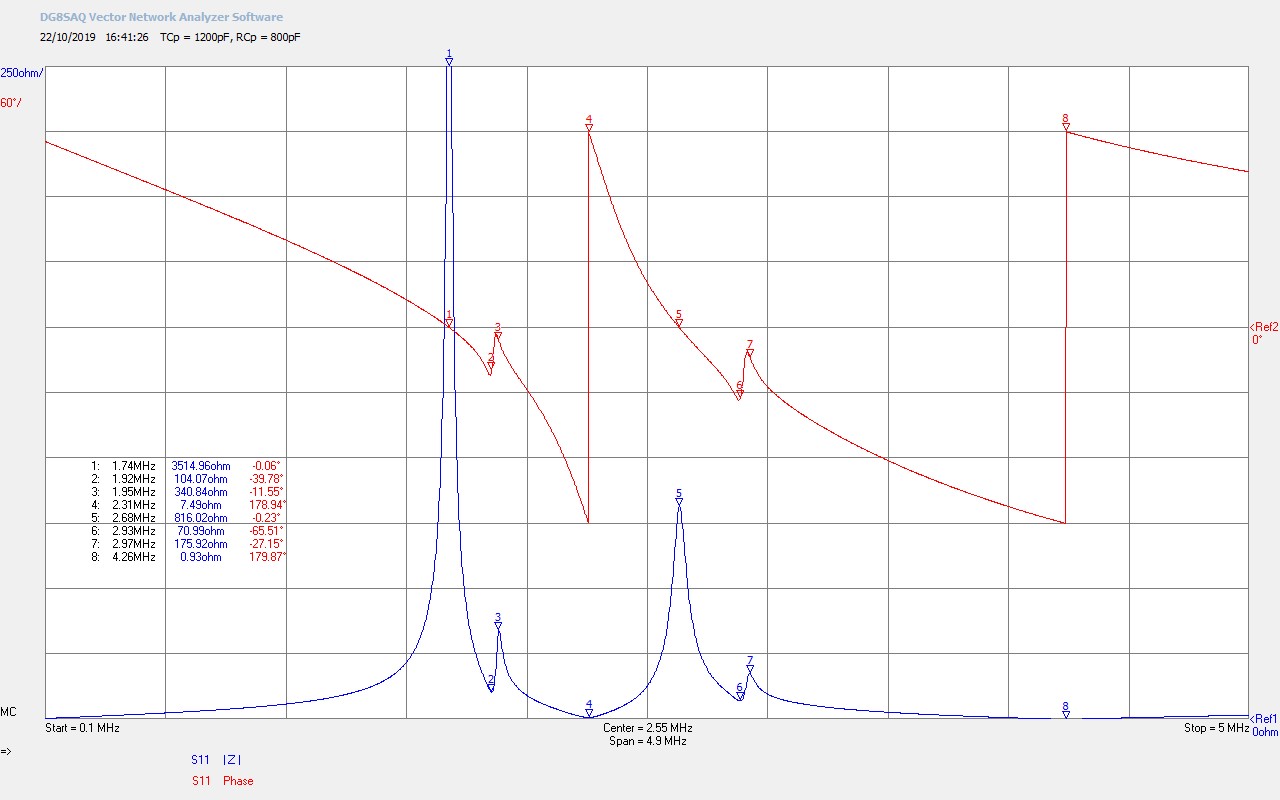

Fig. 3.1 Shows the Z11 impedance for the RTC with the extra coil not connected. The bottom end of the secondary is grounded.
Fig. 3.2 Shows the secondary and the extra coil connected together. The bottom end of the secondary is grounded, and the extra coil extension aerial is fully extended.
Fig. 3.3 The RTC and GRC are connected by a single wire, and with both extra coil aerial extensions fully extended.
Fig. 3.4 The RTC and GRC are connected by a single wire, and with both extra coil aerial extensions adjusted to balance the impedance of the fundamental resonant frequency.
Fig. 3.5 The RTC consisting of a 2 turn copper pipe primary, secondary, and extra coil with extension is connected to the MWO generator at the spark gap outputs, showing the overall tuning from the perspective of the generator.
Fig. 3.6 The RTC consisting of a 1 turn copper pipe primary and connected to the MWO generator at the spark gap outputs.
Fig. 3.7 The RTC with a 1 turn copper strap primary connected to the output tuned MWO generator at the spark gap outputs, and showing a clean tuning for the fundamental resonant frequency at 822kc/s.
To view the large images in a new window whilst reading the explanations click on the figure numbers below, and for a more detailed explanation of the mathematical symbols used in the analysis of the results click here. For further detail in the analysis and consideration of Z11 typical for a Tesla coil based system click here.
Fig 3.1. Shows the impedance measurements for the RTC with the secondary grounded, the extra coil disconnected, and where the primary tank capacitance has been arranged to be series CP = 40pf, which puts the primary resonant frequency FP at a much higher frequency and far away from the secondary. This would be the proper drive condition for the original linear amplifier generator (LAG) where FP is not arranged to be equal to FS. For the spark gap generator (SGG) it is necessary to match FP as closely as possible to the combined resonant frequency of the secondary and the extra coil together. The fundamental parallel resonant frequency of the secondary Fs at M1 = 1326kc/s, and as is to be expected with this form of air-cored coil, the FØ180 or series resonant point at which a 180° phase change occurs, is at a higher frequency at 1571kc/s at M2. At M3 = 2398kc/s a tiny resonance is being coupled from the disconnected extra coil which, being mounted in the centre on axis with the secondary, is close enough to have a non-zero coupling coefficient, and hence show some slight resonation reflected into the measurement.
Fig 3.2. Here the extra coil has been reconnected and two resonant features can be noted, the lower from the secondary, and the upper from the extra coil. The effect of the coupled resonance between the two coils with a non-zero coupling coefficient is to push the secondary resonance down in frequency to where the FS at M1 is now at 826kc/s which is very close to the original drive frequency of the linear amplifier generator at 848kc/s. The fundamental resonant frequency of the extra coil, (now in λ/4 mode with one end at a lower impedance connected to the secondary, and the other connected to the high impedance of the extendable aerial), at M3 is now 1725kc/s
Fig 3.3. Here both the RTC and GRC have been connected together to complete the overall system, and where the bottom end of both secondaries are connected together by a single wire transmission line. Both the RTC and GRC have their extra coil adjustable extensions fully extended. It can be seen that both the secondary and extra coil resonant frequencies have been split in two, to reveal four resonant frequencies from the four main coils, 2 in the RTC, and 2 in the GRC. The markers at M1 at 833kc/s and M3 are due to the secondary resonance in the RTC and GRC respectively, and the markers at M5 at 1752kc/s and M7 at 1801kc/s are due to the extra coils. It can be noted that the impedance of the RTC and GRC are not well-balanced the resonance is stronger on the RTC side where |Z| at M1 ~ 741Ω, and M3 ~ 342Ω. During running operation with either the LAG or SGG this would result in more energy stored in the RTC coil, the standing wave null on the single wire transmission line would be pushed away from the RTC and towards the GRC, and less power would be available at the output of the primary in the GRC.
Fig 3.4. Here the lengths of the extra coil extensions have been adjusted to balance |Z| at M1 and M3 at ~500Ω. The RTC extended length was 57cm, and the GRC extended length was 84cm, measured from the copper to aerial join, and to the base of the ball top load. With very fine adjustment, which is very difficult to accomplish, it may be possible to also balance |Z| for the extra coils at M5 and M7. This would result in the ideal balanced and equilibrium state, where the electric and magnetic fields of induction are balanced across the entire system, energy storage is equal, the null point is equidistant between the RTC and the GRC, and maximum power can be transferred between the two coils. In practice, when |Z| for the fundamental secondary resonance is equal, as shown, the overall system can be considered to be well-balanced, and will perform close to its maximum performance. Very slight adjustments to the drive frequency from the generator can then be used to nudge the system into the best overall balance and match. FS at M1 is now 858kc/s which is now close to the original drive frequency of the LAG at 848kc/s.
Fig 3.5. Shows the impedance characteristics of the RTC from the perspective of the SGG. The vector network analyser (VNA) is connected to the outputs of the spark gaps in the generator, so the characteristics include the tank capacitance of 6.1nF and the primary coil, which in this case is 2 turns of 1/4″ copper pipe. It can be seen that the resonant frequency of the primary FP is somewhat below FS as M1 at 549kc/s, and is moving away from M2 and M3. FS has also reduced to 801kc/s at M2 which also shows that the loading in the primary is too much. The inductance of the primary coil, or the tank capacitance, needs to be reduced in order to establish a better match between the generator and the RTC.
Fig 3.6. Here the number of turns of the primary has been reduced to one, which reduces the inductance in the primary resonant circuit with the generator. M1 is now closer to M2 and M3 and the FS has now increased to 819kc/s. The tuning between the generator and the RTC has now swung slightly the other way and the primary is pushing upwards on the secondary characteristics. This state is however a better state of tune than that shown in figure 3.5. It can also be seen that FE for the extra coil is cleaner and less impacted by the primary resonance. Additional fine tuning of the system would ultimately be accomplished by moving one side of the primary connection a certain distance around the circumference of the primary loop, (to form a fractional number of turns in the primary e.g. 1.4), and gain balanced and equidistant spacing for markers M1 and M3 from M2.
Fig 3.7. Here the single turn copper pipe primary has been replaced with a single turn copper strap, which was deemed to present a lower impedance to the generator, and improve the magnitude of the oscillating currents in the primary. In order to further improve the tuning two 22nF 3kV capacitors in parallel (44nF) were added to one of the outputs of the SGG as shown in the schematic of figure 2.2. This reduced the tank capacitance slightly from 6.1nF to 5.4nF. The inductance of the strap was measured to be 2.5uH which combined with the tank capacitance of 5.4nF provides a theoretical lumped element resonant frequency of 1370kc/s. referring back to figure 3.1 it can be seen that FS, the resonant frequency of the secondary, without the extra coil at M1 is 1326kc/s. So the primary circuit tuned and driven at this point has a very close match to the secondary coil, which ensures that maximum energy can be coupled from the primary to the secondary, and then combined with the extra coil, maximum power can be transferred from the generator to the RTC, and ultimately to the GRC when further connected. For the purposes of this endeavour this state of retune was considered adequate for further demonstration and exploration of the Colorado Springs experiment.
The experimental phenomena observed during the operation of the TCS experiment, retuned to work with the MWO generator, can be seen in the first video on this page.
Summary of the endeavour:
The overall endeavour facilitated the demonstration and exploration of tuning and operating the MWO spark gap generator to work with the Colorado Springs demonstration. In the process the RTC primary and secondary needed to be modified for optimum running with the SGG. Throughout the endeavour a wide range of measurements were demonstrated including:
1. Z11 impedance measurements for the series fed secondary and extra coil, for the RTC.
2. Z11 impedance measurements for the primary combined with the secondary, and the exta coil, for the RTC.
3. Combined Z11 impedance measurements for both the RTC and GRC, where the bottom ends of both secondaries were connected together to form a single wire transmission line.
4. Fine tuning of the system by adjusting the wire length of the extra coil extensions, in order to balance |Z11| in the fundamental and second harmonics.
5. Z11 impedance measurements using a computer connected vector network analyser.
The endeavour also facilitated the demonstration and exploration of the following interesting Tesla related phenomena:
6. Single wire electric power transmission.
7. Longitudinal transmission of electric power.
8. Emission of radiant energy pulses from an incandescent bulb.
9. Radiant energy pulses attracting metal to the bulb.
10. Amplification of radiant energy by interaction with a human hand.
11. Transference of electric power between a TMT “transmitter” and “receiver”.
Click here to continue to the next part, ESTC 2022 – Vector Network Analysis & Golden-Ratio/Fractal-Fern Plasma Discharges.
1. ESTC 2019, Energy, Science, and Technology Conference, A & P Electronic Media , 2019, ESTC
2. Dollard E., Preview of Theory, Calculation & Operation of Colorado Springs Tesla Transformer, 2019, EricPDollard
In this first part we will look at both video experiments and measurements to investigate and demonstrate the transference of electric power via the transmission medium of a single wire, and combined with and without multiple loads. The experiments are undertaken using the flat coils designed, measured, and tested in detail here. Part 1 of this topic is intended to experimentally introduce the transference of electric power, and the various properties, phenomena, and effects that can be measured within such an electrical system when excited using the vacuum tube generator as a feedback oscillator, details here.
A more detailed introduction to the principles of transference of electric power can be found here. The experimental work in this part is intended to investigate and demonstrate aspects of the following:
1. Tuning measurements using a vector network analyser to measure Z11, the small signal ac input impedance for the experimental system, from the perspective of the generator.
2. Tuning the transmitter and receiver to different points to demonstrate different transference phenomena.
3. Single wire transmission and the longitudinal magneto-dielectric (LMD) mode.
4. Tuning to power a load within the single wire transmission line.
5. Tuning to power a load at the output of the receiver.
6. Tuning to establish the LMD mode of transmission between the transmitter and the receiver.
7. Tuning to establish the null point of the LMD mode within the single wire load.
8. Tesla’s wireless transmission of electric power in the near field, using a pair of tuned Tesla magnifying transformers (TMT).
9. Transference of electric power between the transmitter and receiver in the near field.
Figures 1 below show an overview of the experimental arrangement which consists of two flat coils used as transmitter and receiver and joined via the base of the secondary coils by a single wire transmission line with an inline 100W four incandescent lamp load, (4 x 25W 240V pygmy lamps). The transmitter primary is connected to the 811A vacuum tube generator via a matching unit which in this case consists of only a 1200pF vacuum variable capacitor in parallel with the 2 turn copper strap primary. The receiver primary is tuned by another parallel connected 1000pF vacuum variable capacitor which in turn is connected to another 100W four incandescent lamp load. The outer end terminal of the receiver primary is connected directly to RF ground via a low inductance ground strap. The secondary coils of the transmitter and receiver are positioned facing each other on axis 1.5m apart, and are counter-wound to each other in order to produce a balanced and reciprocal cavity arrangement.
Fig. 1.1 The experimental apparatus for transference of electric power showing transferred power being dissipated in the single wire transmission load.
Fig. 1.2 By changing the tune, and hence the mode of transmission between the transmitter and receiver, the LMD standing wave is established and the transferred power is dissipated in the receiver load.
Fig. 1.3 Maximum voltage potential is established at the top-ends of the transmitter and receiver secondary coils, which together act as a cavity for the LMD standing wave, and power is transferred directly from transmitter to the receiver load.
Fig. 1.4 The pickup coil on the back centre of the transmitter coil, allows the vacuum tube generator to self-tune and track the frequency changes within the resonant bands of operation.
Fig. 1.5 The experimental system is tuned across its full operational range by adjusting the transmitter primary vacuum tube variable capacitor. Fine tuning is accomplished by adjusting the receiver primary vacuum tube variable capacitor.

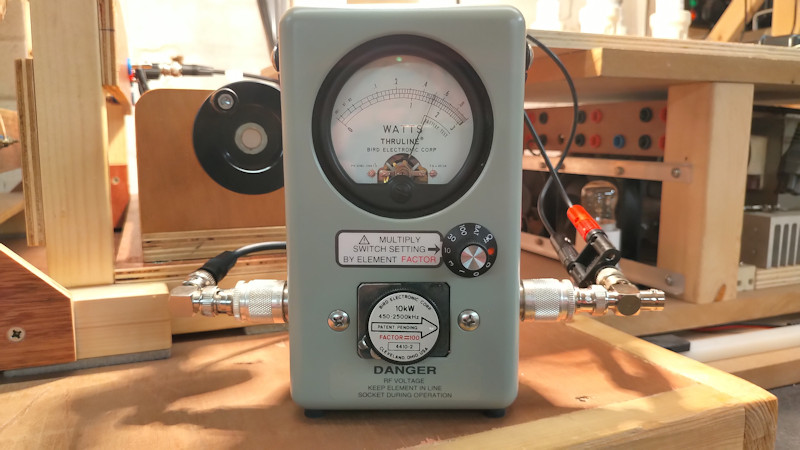

Fig. 1.6 The experiment is measured using power meters, rf ammeters, an oscilloscope connected with high voltage and current probes, and the frequency with a digital frequency counter.
The 811A vacuum tube generator is used in this experiment as a tuned plate class-C Armstrong oscillator which derives automatic feedback from a pick-up coil placed close to the secondary coil of the transmitter, and can be clearly seen on the back of the transmitter in figures 1.4-1.6. The advantage of using a self-tuned oscillator as the generator for this experiment is that complete tuning of the system can be easily accomplished simply by adjusting CPT, the primary capacitance of the transmitter, (and for fine tuning CPR the primary capacitance of the receiver). As CPT is adjusted over its range the generator tracks the tuning changes in the overall system allowing very precise and optimum frequency tracking through the various resonant bands of the system.
The dis-advantage of self-tuning the generator in this way, is in the regions where there is very little coupling between the primary and secondary of the transmitter coil, (far from the resonant regions), there is insufficient feedback to the vacuum tubes and oscillation can be unstable or non-existent. To explore these low coupling regions a fixed frequency excited linear amplifier would be the preferred choice, which will be covered in another part. For this part in exploring the transference of electric power via transmission between a transmitter and receiver coil via a single wire transmission line, we are most interested in the resonant regions of the system where the self-tuned oscillator allows for convenient and accurate tracking within these bands.
The first video introduces the experimental setup, instrumentation, and readings, and then looks in detail at the Z11 small signal impedance characteristics for a range of different tuning conditions for both the transmitter and receiver coils, combined with a single wire transmission medium, and both with and without multiple incandescent lamp loads.
Figures 2 below show the detailed Z11 impedance measurements that were presented in the first video, and will be referred to in the consideration of the experimental results after the second video.

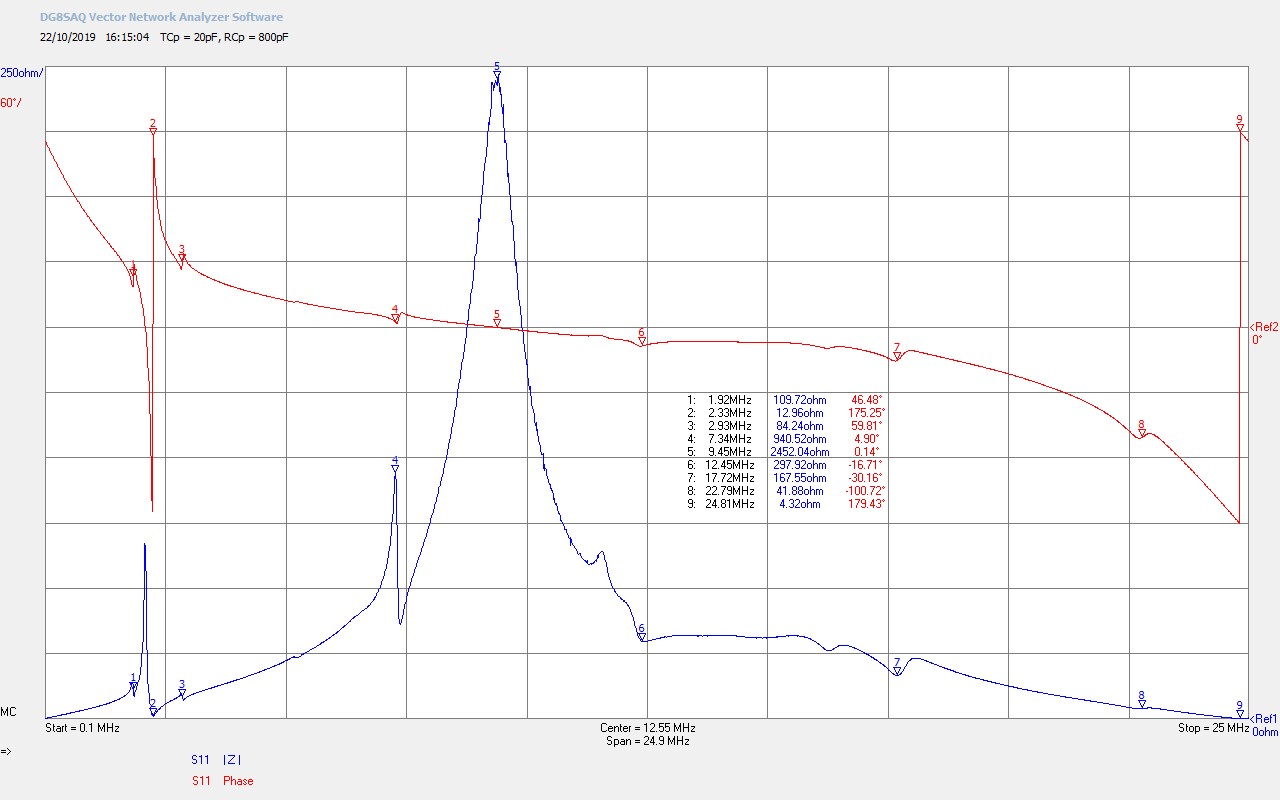

Fig. 2.1 The wide band frequency scan from 100kHz - 25Mc/s showing the fundamental resonant frequency and odd harmonics of the secondary, and the large primary resonance with the transmitter primary tuning capacitance fully open at 20pF.
Fig. 2.2 The wide band frequency scan with transmitter primary capacitor fully wound in to ~1200pF
Fig. 2.3 Shows the detailed scan of the complete experimental system, and where the transmitter primary capacitance is fully wound out at 20pF.
Fig. 2.4 The transmitter and receiver primary capacitances set equal at 800pF, and giving an overall system resonant point of ~ 3.06Mc/s, which was also found to mismatch the transmitter and receiver leading to full dissipation of electric power in the single wire load.

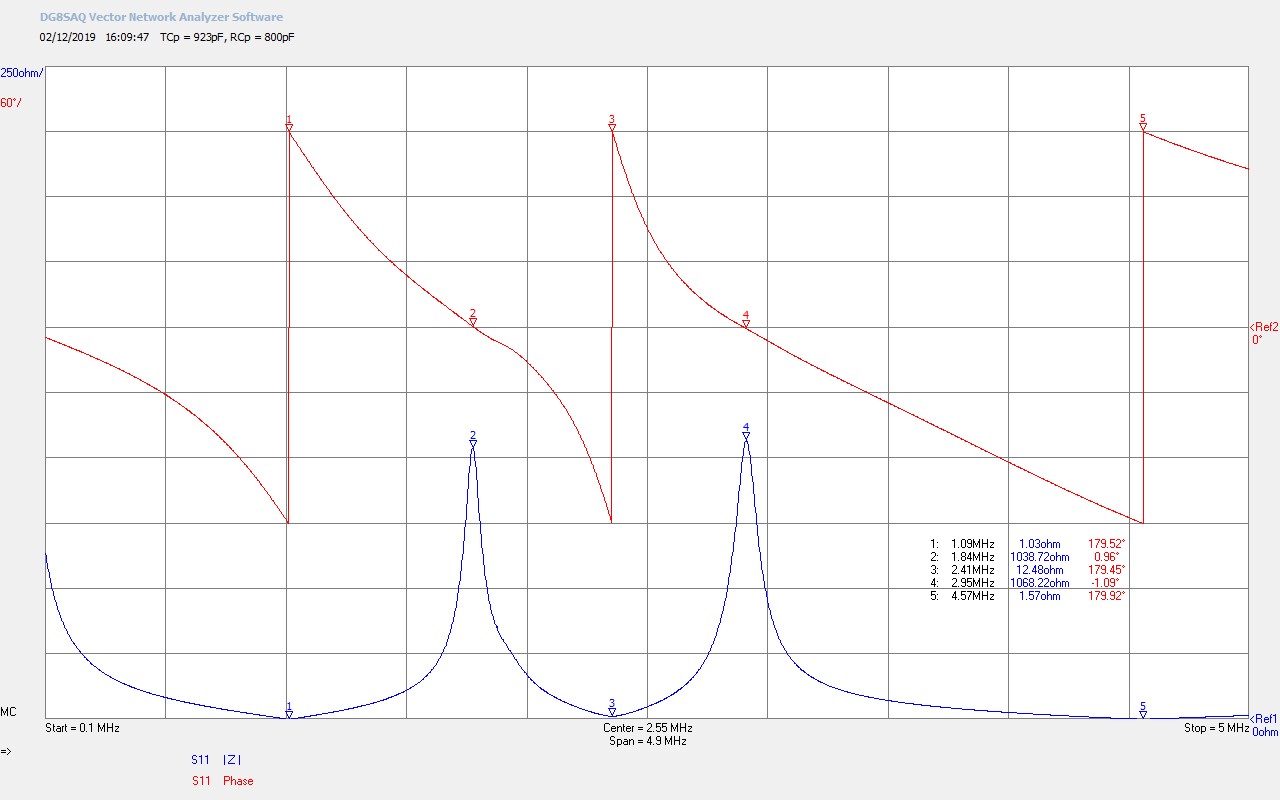

Fig. 2.5 Transmitter primary capacitance set to 870pF to balance the lower frequency of the secondary for both the transmitter and receiver, and giving an overall system resonant point of ~ 1.9-2.0Mc/s which was also found to be within the range for transference of electric power to the receiver load.
Fig. 2.6 Transmitter primary capacitance set to 895pF to optimally balance the lower and upper frequencies of the secondary and primary for both the transmitter and receiver, and giving an overall system resonant point of ~ 1.92-2.05Mc/s, which was also found to be the optimal frequency range for transference of electric power to the receiver load.
Fig. 2.7 Transmitter primary capacitance set to 922pF to balance the upper frequency of the primary for both the transmitter and receiver, and giving an overall system resonant point at the lower frequency of ~ 1.84Mc/s, which was also found to mismatch the transmitter and receiver leading to full dissipation of electric power in the single wire load.
Fig. 2.8 Transmitter primary capacitance fully wound in at ~1200pF, and giving an overall system resonant point at the lower frequency of ~ 1.74Mc/s, which was found to mismatch the transmitter and receiver leading to full dissipation of electric power in the single wire load.
Fig. 2.9 Transmitter primary capacitance set at 1008pF and with receiver load connected, which gives an overall system resonant point at the lower frequency of ~ 1.82Mc/s.
Fig. 2.10 Transmitter primary capacitance set at 843pF to balance both the secondary and primary reonant points, with the receiver load connected, which resulted in unstable oscillation of the overall system.
The second video demonstrates interesting phenomena and effects relating to the transference of electric power from the vacuum tube generator to the transmitter, and then via the single wire transmission medium through to the receiver coil, and to finally the load at the output of the receiver. Various different modes of transmission are considered which are established by different tuning points of the experiment.
There have been a range of different interpretations as to the nature of wireless transmission of power from a resonant transmitter to a resonant receiver, through the surrounding medium, proposed as early as the late nineteen century by Maxwell[1], Tesla[2,3], Steinmetz[4] and much later by others such as Dollard et al.[5,6,7], Tucker et al. [8], and Leyh et al.[9]. Different sources have suggested different mechanisms for the transfer of power between transmitter and receiver, including the Longitudinal Magento-Dielectric mode, Multiple order magnetic field coupling, and Electric field coupling.
In my research into the transference of electric power so far, I have found most validity in both conceptual and experimental terms from wireless transmission at distances greater than that which can be attributed through near-field induction, (the conventional transformer effect), through the principle of the Longitudinal Magneto-Dielectric (LMD) mode. In my consideration of the results of the experiments presented in this post, I find the LMD principle to most closely account for the observed phenomena and properties surrounding the transfer of electric power through a near-field TMT arrangement.
I consider the experiments presented in this post to be transmission in the near-field, rather than what might ordinarily be considered by conventional antenna theory the mid-range, where the distance between the transmitter and receiver is more than 2-3 times the diameter of the coils, (antenna aperture). In this case the central tuned resonance of the TMT system is ~2Mc/s, which corresponds to a free-space wavelength of ~150m. Since the coils are connected by a single wire transmission line, and are spaced 1.5m apart, I very much consider this scenario to be near-field transmission since the receiver coil is very much less than a wavelength from the source.
The transfer of electric power in this scenario is as a result of the specific modes formed by the electric and magnetic fields of induction, and hence the transfer of power is “inducted” or “extended”, rather than propagated as would be the case for a transmitting antenna. In subsequent posts I will be presenting experiments on the telluric transfer of electric power where the wireless transmission distances are in the far-field, and are very much greater than the wavelength of the fundamental resonant frequency of the TMT system. Despite the near-field arrangement the transfer of electric power in this system is not via the conventional magnetic coupling of the “transformer effect”.
This was confirmed by removing the single wire transmission and simply terminating both bottom-ends of the secondary coils with a short wire extension, in order to lower the impedance at this end and ensure λ/4 resonation. In this condition, and when tuned over the full available frequency range, no transmission of power took place between the transmitter and receiver coils, even when both were tuned to the same resonant frequency at either the upper or lower frequency. If the conventional transformer effect occurred in the near-field then some detectable power would have been transferred between the generator and receiver load. This clearly shows that transference of electric power in this TMT experimental arrangement requires the transmission of the electric and magnetic fields of induction via a lower impedance path through the transmission medium, (in this case the single wire connection). When both of the short secondary extension wires were then subsequently connected to earth, (either independent dedicated rf grounds, or earth points from the utility supply), power was again transferred between the source and load at the correct tuning.
It is conjectured here that transference of electric power, at the correct point of tuning in this experiment, occurs through establishing the LMD mode of transmission as a standing wave between the transmitter and receiver coils, where a cavity is formed between the top-loads of the two secondary coils. In successive cycles of the generator oscillations electrical energy is coupled from the generator into the cavity. The pressure of the wavefront in the longitudinal mode moves backwards and forwards as it traverses the cavity from the transmitter to the receiver, reflected from the top load of the receiver and back again towards the transmitter where it is amplified or suppressed by coupling from subsequent cycles from the generator. Whether the longitudinal wavefront is amplified or suppressed depends on the tuning of the experiment and hence the longitudinal wavelength in the cavity.
At the correct point of tuning the amplitude of the wavefront is reinforced by successive cycles from the generator. The magnitude of this longitudinal wavefront reaches an equilibrium in the cavity based on the impedance characteristics of the cavity medium, its tuning, and dissipation of the stored power to both the transmission medium, and to the surrounding environment. The longitudinal wavelength within the medium is longer than that of the generator excitations, which represents a lower frequency of oscillation for the longitudinal mode. This puts the electric and magnetic fields of induction at different phase relationships throughout the length of the cavity, a property of the longitudinal mode that can measured in the cavity region, and is presented in the consideration of the experimental results below.
At the correct point of tuning the di-electric and magnetic fields of induction in the LMD mode form a standing wave in the cavity which results from the longitudinal wavelength, where the boundaries of the cavity are defined by the high impedance, high potential, points at the top-loads of the coils, and one or more null points form inside the cavity. At the fundamental frequency of the LMD mode, (not the same frequency as the fundamental resonance of the secondary coils or the generator oscillations), only a single null will exist in the centre of the cavity, and when the coils are closely spaced in the near-field. At higher order harmonics, and dependent on spacing between the coils multiple null points can form.
Each of the key experimental parts is now considered in more detail, and where appropriate based on the conjecture made above regarding the LMD mode of transmission:
Single wire transmission and the LMD mode
A key feature of the presented experiments in the transference of electric power between the transmitter and receiver is that power is transferred via a single wire which in itself is an unsusual method of transfer within standard electric circuit theory and experiment.
In a standard closed electric circuit current is continuous throughout the circuit with the voltage potential around the circuit dependent on the impedance of the elements and/or transmission lines that make up the circuit topology. The underlying premise is that a circuit has a forward and return path where the impedance is sufficiently low to allow for a “flow” of current from the source around the circuit, and returning to the source. Power is dissipated in the various impedances that make up the circuit according to their characteristics and the voltage and current phase relationship of the overall impedance of the circuit.
Ordinarily introducing a very high impedance, (in principle an infinite open-circuit), will reduce the current in the circuit to such a low-level, and in principle to zero, so that no current can flow around the circuit from and returning to the source, and hence no power is dissipated in that circuit. Even in an rf transmission line the normal transverse mode of transmission assumes a voltage and current distribution long the transmission line based on its distributed impedance, and its matching to the source and load terminations, where the transmission line is based on a closed circuit formed between the source and load in two or more conductive mediums between the source and load.
As can be seen in the videos the four incandescent load can be fully lit where no obvious closed circuit exists. The load is not connected between the outputs of the secondary (topload and base of the secondary), but is rather only connected via the base of a secondary. The other side of the load is left as open-circuit with a short trailing wire. Once again a cavity is formed between the top-load of the transmitter secondary and the open-circuit of the trailing wire, which would enable the LMD mode to establish. The electric and magnetic fields of induction are both present around the boundaries of the single wire, and a longitudinal wavefront is established at the longitudinal frequency in the cavity. At the upper and lower resonant frequency of the secondary energy is coupled from the generator into the cavity, and the longitudinal mode is established along the length of the cavity.
A higher impedance load placed within the electrical cavity at resonance will dissipate power in a transverse mode from the established wavefront when the electric and magnetic fields of induction local to the load are in phase. That is, the induced voltage across the load, and the induced current in the load, are predominantly in phase in the region of the load. In this case energy can then be transferred (induced) from the longitudinal wavefront to the transverse mode, and power will be dissipated in the lamp as both light and heat with a warm yellow colour temperature, as can be seen in the video. Placing the load right at the end of the wire will not light the incandescent lamp at the termination of the cavity, where the voltage and currents induced in the wire are 90° out of phase at the open-circuit termination.
Figures 3 below shows the phase relationship between the voltage and current oscillations of the generator in the primary, and the phase relationship between the voltage and the current at three different points in the single wire section of the cavity. It is conjectured that the changing phase relationship between the induced voltage and currents along the single wire is characteristic of the longitudinal mode established in the cavity, and results in unusual electrical phenomena and characteristics that are measured in TMT experimental systems.
In each figure the traces are as follows:,
Yellow – The voltage across the transmitter primary.
Green – The current through the transmitter primary, calibrated 1A/div.
Cyan – The voltage measured at centre of the single wire transmission line.
Red – The current measured through the single wire transmission line, calibrated 1A/div.
Each frequency 1.75, 1.94, and 3.32 Mc/s are measured at three different points in the single wire section of the cavity:
SWC1 – At the bottom-end of the transmitter secondary.
SWC2 – In the middle of the single wire.
SWC3 – At the bottom-end of the receiver secondary.
Fig. 3.1 SWC1 at the lower resonant frequency, where electric power is fully dissipated in the single wire load, showing the single wire voltage and current to be nearly in phase at the transmitter secondary.
Fig. 3.2 SWC2 at the lower resonant frequency, where electric power is fully dissipated in the single wire load, showing the single wire voltage and current to be slightly out of phase at the single wire load.
Fig. 3.3 SWC3 at the lower resonant frequency, where electric power is fully dissipated in the single wire load, showing the single wire voltage and current to be almost in phase at the receiver secondary coil.
Fig. 3.4 SWC1 at the resonant frequency where electric power is transferred to the receiver load, showing the single wire voltage and current to be in phase at the transmitter secondary.
Fig. 3.5 SWC2 at the resonant frequency where electric power is transferred to the receiver load, showing the single wire voltage and current to be out of phase at the single wire load.
Fig. 3.6 SWC3 at the resonant frequency where electric power is transferred to the receiver load, showing the single wire voltage and current to be out of phase at the receiver secondary.
Fig. 3.7 SWC1 at the upper resonant frequency, where electric power is fully dissipated in the single wire load, showing the single wire voltage and current to be out of phase at the transmitter secondary.
Fig. 3.8 SWC2 at the upper resonant frequency, where electric power is fully dissipated in the single wire load, showing the single wire voltage and current to be out of phase at the single wire load.
Fig. 3.9 SWC3 at the upper resonant frequency, where electric power is fully dissipated in the single wire load, showing the single wire voltage and current to be out of phase at the receiver secondary.
It is important to note from these measurements the varying change in phase relationship between the voltage and current at the transmitter, centre, and receiver ends of the single wire, (cyan and red trace), for tuned power in the receiver load, figures 3.4, 3.5, and 3.6. It is conjectured that this varying phase change across the single wire length between the voltage and the current, (~1.94Mc/s), which is hardly present when not correctly tuned for the transference of electric power (~1.75Mc/s and 3.32Mc/s), is indicative of a standing wave resonance of the LMD mode in the cavity, a cavity which has been formed by two coils that are matched at resonance in the TEM mode, and joined by a transmission medium. It is the combination of matched resonance in the TEM mode at the coils, and a tuned standing wave of the LMD mode that leads to the transference of electric power with very low loss between the generator and the final receiver load.
Tuning to power a load within the single wire transmission line
This experimental point is shown in figures 1.1 and figures 2.4, 2.7-2.9. Interestingly this condition is little different to the open-circuit terminated single wire case discussed above. However, now both transmitter and receiver are connected together via the single wire transmission line which also contains an incandescent lamp load. The single wire lamps could be tuned to light fully at either the lower or upper resonant frequencies of the combined secondary coils, with no or very little power dissipated in the final load at the receiver primary.
Once again a cavity is formed between the two top-loads of the transmitter and receiver secondaries, and through the single wire transmission line, the LMD mode is present, and there is a varying phase relationship between the voltage and current measured in the single wire. The mis-match in tuning between the transmitter and receiver means that, whilst the LMD mode is always present, it is not tuned to form a standing wave in the cavity. There are no detectable null points along the single wire and the neon lamp at the top-load of the receiver is not lit, showing that there is no high-potential at the top-end of the receiver coil. In this case the TMT transmission system is not tuned between the transmitter and receiver and so no power is being coupled through the receiver coil to its load. The system appears almost identical to the open-circuit single wire case above.
Energy is being coupled at the secondary resonant frequency from the generator into the transmitter secondary in the transverse mode, and the mis-match in tuning between the high-Q transmitter and receiver means that energy is not reaching the receiver coil but rather being consumed in the load in the single wire. This is further demonstrated in the video when the receiver secondary is unplugged from the single wire the lamps of the load in the single wire stay lit, they do change intensity slightly as the tuning changes, but can be returned back to full brightness by slight adjustment at the transmitter primary capacitor.
In summary, the transference of electric power from the generator to the single wire load occurs at the lower or upper resonant frequency of the transmitter coil, and is largely independent of the mis-matched termination at the other end of the single wire, whether that be a simple open-circuit, or short-circuit to ground, or another mis-matched resonant circuit such as a TMT receiver.
Tuning to power a load at the output of the receiver
This experimental point is shown in figures 1.2 and figures 2.5, and 2.6. With careful tuning there is a very narrow band, as seen on the video, where the high-Q TMT transmitter and receiver are tuned very accurately to one another, and power can be transferred directly between the transmitter and receiver via the single wire transmission, and with very little power dissipated in the single wire or its load. In this experimental setup the tuned frequency at the generator is between ~1.92 – 2.05 Mc/s to demonstrate the transference of electric power between generator and final load.
In this scenario the LMD mode is tuned in the cavity to form a standing wave, a null point is present at the centre of the path length of the cavity, which in this experiment where the single wire load was placed. Both top-loads are at maximum potential indicating that the cavity is in the fundamental resonant frequency of the LMD mode, that is nλLMD/2, where n=1 and there is a high potential point at the transmitter top-load, a zero potential null point in the single wire, (at the single wire load), and a high potential point at the receiver top-load.
Overall this is now the special condition where firstly, the transverse electromagnetic mode (TEM) is matched independently for both the transmitter and receiver coils, so they are both able to couple maximum energy, the transmitter from the generator, and the receiver to its load, at the same resonant frequency. This is secondly combined with the LMD mode formed in the secondary coil of the transmitter TMT, and tuned within the cavity of the single wire transmission medium to form a standing wave, where in its fundamental mode a single null point exists in the centre of the single wire transmission medium. The combination of the TEM and LMD modes both correctly tuned, leads to an inter-dependent balanced condition within the electrical system, where transference of electric power between the generator and load can occur with minimal loss.
In principle, transmission in this mode could cover great distances where an LMD standing wave is established in a transmission cavity where there are many null points along the single medium of the conductor, whether that be a wire, the earth, or other lower impedance or resonant medium. Again in principle with the correct setup of the TEM and LMD modes in the complete system very little power need be lost in the transmission medium, which can be tuned correctly by detecting the null points in the medium, and the varying phase relationship of the measured voltages and currents in the medium, which appears at this stage to be an indication of the LMD mode.
Summary of the results and conclusions so far:
1. In consideration of the experimental results presented and phenomena observed, it is conjectured that the LMD mode is established in a resonating coil when a cavity is formed between the top-load of the coil, in this case an open-circuit with a neon indicator bulb, and the outer boundary point of the circuit connected to the bottom-end of the coil. The LMD mode enables transmission of the electric and magnetic fields of induction together around the boundary of the single transmission medium, in this case around the outside of the single wire. The magnetic and di-electric fields of the LMD mode are in the same plane of travel and hence constitute a longitudinal pressure wavefront that traverses the cavity reflecting from the high impedance boundaries at each end and establishing an LMD wave with wavelength distinct from the transverse resonant wavelength of the transmitter and receiver secondary coils.
2. When the LMD mode is not established as a standing wave within the cavity of the single transmission medium the energy coupled from the generator into the transmitter coil by transverse induction is consumed by a higher impedance load in the single transmission medium, or with inadequate load in the transmission medium will be discharged to the surrounding environment through streamers at the high potential top-load.
3. When an LMD standing wave is established in the cavity, and the high-Q transmitter and receiver coils are both resonating in equilibrium with each other in the very narrow matched band (~1.92Mc/s – 2.05Mc/s) power is transferred directly from the generator to the final load at the receiver, with very little energy consumed in the single transmission medium
4. An LMD standing wave can be established in a cavity that is geometrically and electrically reciprocal at each end, e.g. with an identical TMT transmitter and receiver designed to resonate at the same transverse frequency, which causes the longitudinal pressure wave to be reflected from each end of the cavity.
5. Where the wavelength of the LMD mode is a whole number of half-wavelengths nλLMD/2, amplification of the LMD mode will occur in the transmitter until a dynamic equilibrium is established within the electrical system and with the surrounding medium. In this case the null point/s of the standing wave can be measured in the single transmission medium, and tuned carefully either side of this point will show the null point to move towards either end of the single transmission medium, before collapse of the standing wave at the coil boundaries.
6. The LMD standing wave mode could be indicated by a varying phase change between the voltage and current waveforms measured along the length of the transmission medium. It is conjectured that this phase change is preliminary evidence of the amplified longitudinal mode established in the cavity.
7. The combination of the TEM and LMD modes both correctly tuned, leads to an inter-dependent balanced condition within the electrical system, where transference of electric power between the generator and load can occur with minimal loss.
The preliminary results for the transference of electric power in the near-field indicate that considerable more study is required on the various transmission modes present in the TMT system, and particularly a more detailed measurement and study of the phase relationships of the electric and magnetic fields of induction in the transmission medium, and the difference in the resonant wavelengths of the transverse and the longitudinal modes. These two modes appear to interact constructively and in an inter-dependent way when tuned for the optimal transference of electric power between the generator and the receiver load.
Click here to continue to part 2 on the transference of electric power, where the experiment is powered by a spark gap generator, and the differences explored and contrasted to the results obtained here with a single frequency feedback oscillator.
1. Maxwell, J., A Dynamical Theory of the Electromagnetic Field, Phil. Trans. Royal Society, pg459-pg512, January 1865.
2. Tesla, N., System of transmission of electrical energy, US Patent US645576A, March 20, 1900.
3. Tesla, N., Colorado Springs Notes 1899-1900, Nikola Tesla Museum Beograd, 1978.
4. Steinmetz, C., Elementary Lectures on Electric Discharges, Waves and Impulses, and Other Transients, McGraw-Hill Publication, 1911.
5. Dollard, E., Condensed Intro to Tesla Transformers, Borderland Sciences Publication, 1986.
6. Dollard, E. & Lindemann, P. & Brown, T., Tesla’s Longitudinal Electricity, Borderland Sciences Video, 1987.
7. Dollard, E. and Energetic Forum Members, Energetic Forum, 2008 onwards.
8. Tucker, C. & Warwick, K. & Holderbaum, W., A Contribution to the Wireless Transmission of Power, Electrical Power and Energy Systems 47 p235-242, 2013.
9. Leyh, G. & Kennan, M., Efficient Wireless Transmission of Power Using Resonators with Coupled Electric Fields, Nevada Lightning Laboratory, 40th North American Power Symposium, 2008.
In this second part on the transference of electric power we take a look at the differences that arise when a spark gap generator (SGG) is used as the power source for the experiment rather than a single frequency oscillator as used in part 1. It is recommended to study part 1 before this second part, in order to gain an underlying understanding of the overall experiment, phenomena, results, and suggested interpretation of the experimental results, that are characteristic to the practical investigations in the transference of electric power.
Unlike a single frequency oscillator or linear amplifier generator, a spark gap generator produces a very broad range of frequencies which result from the abrupt and impulse-like discharge that occurs at the spark gap. Frequencies generated by such a spark gap discharge, range from the very low in the 10s of Hz, all the way up to 100s of MHz, and beyond into GHz frequencies. With such a wide frequency band the stored energy available in the tank capacitors, which are charged at each half-cycle of the HV supply, is distributed across this wide band leading to two significant factors. Firstly that considerably less energy is available from the source at the resonant frequency of the transmitter coil, and secondly, tuning of the TMT transmission system has considerably less effect on the transference of electric power between the generator source and the receiver load.
The experimental work in this part is intended to investigate and demonstrate aspects of the following:
1. Tuning measurements using a vector network analyser to measure Z11, the small signal ac input impedance for the experimental system, from the perspective of the spark gap generator.
2. Tuning indifference when powering a load either in the single wire transmission line or at the output of the receiver.
3. Reduced power available in the single wire transmission line.
4. Reduced power available in the receiver load.
5. Tesla radiant energy and matter phenomena.
6. Transference of electric power between the transmitter and receiver in the near field.
Figures 1 below show an overview of the experimental arrangement which consists of two flat coils used as transmitter and receiver and joined via the base of the secondary coils by a single wire transmission line with an inline 60W four incandescent lamp load, (4 x 15W 240V pygmy lamps). The transmitter primary is connected to the Spark Gap Generator via a matching unit which consists of two compound series tank capacitors, shunted 4 x 1B22 hydrogen-argon spark gap modulator tubes, and a 1200pF vacuum variable capacitor in parallel with the 2 turn copper strap primary.
The receiver primary is tuned by another parallel connected 1000pF vacuum variable capacitor which in turn is connected to a 50W two incandescent lamp load. The outer end terminal of the receiver primary is connected directly to RF ground via a low inductance ground strap. As in part 1 the secondary coils of the transmitter and receiver are positioned facing each other on axis 1.5m apart, and are counter-wound to each other in order to produce a balanced and reciprocal cavity arrangement.
Fig. 1.1 Transference of electric power powered by the spark gap generator, showing the transmitted power dissipated in the single wire load.
Fig. 1.2 Tuned at the lower resonant frequency of the TMT system, power is dissipated in the single wire load, and with no significant power transmitted to the receiver load.
Fig. 1.2 Optimally tuned for balanced transfer of electric power, and with the single wire load removed from the transmission medium, a small proportion of power could be transferred to the receiver load.
Fig. 1.4 At optimal balanced tuning RF currents in the primary ~4.5A, and secondary ~250mA, are high although only a small proportion of power is transferred from the generator to the receiver load.
Fig. 1.5 The spark gap generator runs quietly and stabily with the 2.3nF tank capacitance, with strong tank oscillations in the transmitter primary. RF primary current reaches ~4.5A with an total input power of just over 400W to the HV Supply.
Fig. 1.6 The 1B22 hydrogen argon spark tubes are shunted with copper bars out of the primary tank circuit for these experiments. Their internal resistance when triggered is significant, reducing the magnitude of the primary oscillations and reducing the total power transferred to the receiver.
Figure 2 below show the schematic for the transference of electric power experiment powered by the SGG. The high-resolution version can be viewed by clicking here.
Fig. 2.2 Schematic diagram for the TMT transmission experiment showing the HV Supply, the Spark Gap unit, the tank circuit components, and the transmitter and receiver coils with loads and single wire transmission medium.
The principle of operation and matching requirements are somewhat different between the vacuum tube generator (VTG) and the SGG. In the VTG maximum power transfer between the generator and primary is accomplished when the impedance of the primary resonant circuit is equal to the combined vacuum tube internal impedance, when oscillating at the designed and configured operating point, (class C amplifier), for the tuned primary frequency, and run in CW (continuous wave) mode. In this case the primary circuit is not arranged to resonate at the same frequency as the secondary, where oscillating primary currents would be far too large and lead to destruction of the vacuum tubes. Rather the correct impedance match between the primary and tube oscillator facilitates maximum transfer of power from the non-resonant tube tank circuit to the tuned primary circuit, whilst keeping vacuum tube power dissipation under the maximum combined rating for the tubes.
In the SGG case it is in principle optimal to arrange the resonant frequencies of the primary tank circuit, and the secondary coil to be the same. In this case bursts of very large and maximal oscillating currents are generated in the primary tank circuit, which in turn result in strong magnetic coupling to the secondary circuit, and hence maximum power transfer between the resonant primary tank, and the secondary resonant coil. In practice matched primary tank and secondary coil resonant frequencies cause considerable operating issues when running, as the very high oscillating currents, in the high-Q low impedance primary, result in a very aggressive, unstable, and erratic spark discharge. The de-tuning of the circuit, by deliberate mis-match of the primary tank circuit resonant frequency and the secondary resonant frequency, reduces the Q considerably of the primary, reduces slightly the coupling between the primary and the secondary, whilst considerably stabilising the spark gap discharge to be suitable for experiments in the transference of electric power through a high-Q TMT transmission system.
In the case where a Tesla coil is being used for maximum streamer discharge, it is accepted as best practice to match the primary tank resonant frequency as close as possible to the secondary coil resonant frequency. Here maximum energy is coupled into the secondary and dissipated through the top-load accumulator. In this case the primary frequency is usually de-tuned slightly below the secondary frequency to maximise power transfer during streamer discharge, which leads to very white-hot powerful discharges. For example for a coil arranged to resonate with suitable top-load at 1.7Mc/s the primary resonant tank circuit would be tuned to resonate between ~ 1.5-1.6Mc/s, (~10% lower to compensate for secondary frequency drop on discharge). This case requires a very powerful and robust spark gap that will operate very aggressively, unstably, and producing large amounts of heat, light and noise.
In the case for a TMT transmission system using two or more Tesla coils matched and tuned together in a high-Q narrow bandwidth arrangement, and connected with a single wire and operated in a balanced LMD transmission mode, the primary resonant tank frequency is optimally arranged to be lower in frequency than the secondary resonant coil frequency. In this case there is only a small measured difference in total power being transferred from the generator to the final receiver load as a result of the deliberate primary resonant tank and secondary coil resonant frequency mis-match. For example for a coil arranged to free resonate into a single wire transmission line at 1.7Mc/s the primary resonant tank circuit would be tuned to resonate between ~ 1.0-1.3Mc/s.
The 1B22 hydrogen-argon spark gap tubes were shunted out of the circuit for experiments in the transference of electric power to the receiver load, as their higher internal resistance reduces the primary currents, causing a reduction in the total transmitted power. The shunts are made from copper sheet which remove the tubes from the circuit without increasing the inductance of the primary tank circuit. In experiments relating to Tesla’s radiant energy and matter it is possible to obtain improved results, (amplified phenomena), when the 1B22 tubes are included in the circuit. It is conjectured that the slight dioding action[1,2] as a result of the ionizing radioactive (Radium Ra-226) trigger element, and the improved pulse response of the primary tank circuit, improves the uni-directional energy supply from the tank circuit to the TMT system. This improved uni-directional energy supply increases the intensity of the LMD mode wavefront in the single wire cavity, amplifying radiant energy and matter phenomena.
A correctly triggered and functioning 1B22 will emit a dark purple spark discharge within the aluminium can of the cathode terminal, which is quickly quenched by the rarefied hydrogen-argon gas mix. A defective 1B22 with a leak to air will still work as a spark gap but will generate a brighter green-yellow discharge as aluminium is combusted from the cathode surface. The discharge sustains for longer causing considerable burning of the electrodes, and rapid over-heating causes distortion of the glass tube, with finally destruction of the electrodes.
The following video introduces the experimental setup, instrumentation, and readings, and looks in detail at Z11 the small signal impedance characteristics of the experiment from the perspective of the spark gap generator. It concludes with a range of experiments in the transference of electric power using a spark gap generator, combined with a preliminary introduction to Tesla’s radiant energy and matter experiments.
Figures 3 below show the detailed Z11 impedance measurements that were presented in the video, and will be referred to in the consideration of the experimental results.
Fig. 3.1 The wide band frequency scan from 100kHz - 25Mc/s showing the resonant frequency and odd harmonics of the secondary, and the large primary resonance with tuning capacitance fully open at 20pF. The resonance at marker 1 shows the tank circuit resonant frequency formed by the MMC capacitors and transmitter primary coil.
Fig. 3.2 The wide band frequency scan with transmitter primary capacitor fully wound in to ~1200pF.
Fig. 3.3 Transmitter primary capacitance tuned to optimally balance the lower and upper frequencies of the secondary and primary for both the transmitter and receiver, and giving an overall system resonant point of ~ 1.98-2.15Mc/s.
Fig. 3.4 Transmitter primary capacitance set to balance both the secondary and primary resonant points. The Q of the TMT transmission system has been reduced by connecting the 50W bulb load at the output of the receiver coil.
Figures 4 below show the oscillating voltages and currents in the primary transmitter tank circuit, and also those measured at the single wire load. In both the green and red traces the current amplifier is calibrated at 50A/div, showing the large oscillating currents that occur in the primary, and those transferred to the burst in the secondary.
Fig. 4.1 Shows the voltage (yellow) and current (green) at the transmitter primary coil. The strong oscillations in the tank circuit couple to the secondary.
Fig. 4.2 Shows the voltage (cyan) and current (red) at the bulb load in the single wire transmission medium. Currents in the single wire medium resemble impulse like oscillations, combined with smaller oscillations from the transmitter tank and transmitter secondary.
The principle of operation of the transmitter coil primary tank circuit is explained in detail in the post Spark Gap Generator – Part 2. In fig. 4.2 the current (red) in the single wire medium has become far more impulse-like in nature, rather than the oscillating sinusoidal established in the primary coil ring-down as the tank capacitors discharge in the series resonant tank circuit. It is conjectured that these impulse-like currents may be indicative of the burst wavefront constituting the LMD mode, within the cavity formed between the transmitter and receiver coil top-loads. It may also indicate more clearly why it is possible to observe radiant energy and matter phenomena more easily in a SGG driven TMT system, compared to a VTG or linear amplifier driven TMT system. That is, the nature of the burst currents generated in the primary resonant tank circuit by the SGG generator lend themselves more readily, when induced into the secondary cavity, to the LMD mode in the form of impulse-like, uni-directional bursts. These more uni-directional bursts in turn lead to an intensified wavefront in the cavity and the clearer observation of Tesla’s radiant energy and matter phenomena. This experimental area will be explored in much more detail in subsequent posts, but for now serves as an empirical introduction to these fascinating phenomena.
Fig. 4.1. shows the oscillating voltage and currents generated by the SGG in the primary resonant tank circuit. The oscillating currents (green) are a product of the stored energy in the tank capacitors repeatedly transferred backwards and forwards between the tank capacitors and the inductance of the primary coil. As the stored energy is consumed by transfer to the secondary circuit, and by dissipation as heat, light, and noise in the spark gap, and the series resistances of the primary tank circuit, the envelope of the primary current decays until all stored energy in the current cycle is expended. The oscillating nature of the current when transferred from the primary to the secondary tends to cause “dragging” or “smearing” of the LMD wavefront in the secondary cavity reducing the potency and impact of the pressurised wavefront.
In the most ideal case the wavefront would constitute a single pulse of very large amplitude and with very short pulse width, resembling as closely as possible a true impulse function. This pulse wavefront would traverse the cavity in a uni-directional manner with no reflections or dispersion leading to a singular and positive acting pressure wave with both the di-electric and magnetic fields of induction coherently in phase. In this ideal case the transfer of electric power could be 100% between transmitter and receiver, or if radiant energy phenomena are so arranged by a suitable load or emitter in the single wire transmission medium of the cavity, 100% wireless transfer of electric power could be arranged between many points. The intense radiant energy burst from the strong wavefront may also generate a wide range of unusual and hitherto unexplored electrical and matter phenomena, which may in turn also assist in the experimental exploration of the displacement of electric power, the hidden underlying coherent guiding principle of the undifferentiated electric and magnetic fields of induction.
This most ideal case requires that in the primary tank circuit all the energy stored in the tank capacitor per cycle is transferred to the secondary within the first half-cycle of the ring-down. This would create a single pulse from each cycle where all energy available in the tank circuit is transferred to the secondary, in effect driving the primary with a pulse generator. In order to do this it would be necessary to quench the spark gap after the first half-cycle of the discharge, and also ensure that the impedance of the primary circuit was sufficiently low that all the stored energy in the tank could be discharged in this first half-cycle. Both of these requirements present very challenging practical implementations, and will be explored in more detail in subsequent posts.
Tank circuit capacitance optimisation
In the current primary circuit the tank capacitance was adjusted in three different configurations in order to find the optimum operating point for the experiments in the transference of electric power powered by the SGG. The circuit diagram in figure 2 shows the arrangement of the tank capacitor in these three configurations:
1. 2.3nF 16kV from two series MMC units of four capacitors each. This is the tank capacity used in the video experiment and is very stable with only a very small reduction in the amount of power transferred to the receiver load. From figs. 3.3 and 3.4 the resonant frequency of the series primary tank at M1 is 1.09Mc/s. Good stable operation could be established up to ~800W.
2. 1.9nF 20kV from two series MMC units of four and six capacitors respectively. This tank capacity increased slightly the amount of power transferred to the receiver load over configuration 1, but the unbalanced capacity either side of the primary coil, (4 cap. unit one side, 6 cap. unit the other side), was found to lead to more instability in the spark discharge including “popping” and material ejection at the electrodes at powers only up to 500W. The resonant frequency of the tank circuit in this configuration is ~ 1.2Mc/s
3. 1.6nF 24kV from two series MMC units of six capacitors each. This was found to be the lowest practical tank capacity when running at powers up to 1kW. Lower than this the spark gap became too aggressive and erratic for good accurate measurements and stability in the transference of electric power. The resonant frequency of the tank circuit in this configuration is ~ 1.3Mc/s
Overall, configuration 1 was selected for most experiments in the transference of electric power, providing the best balance between longer-term stable and reliable operation of the spark gap, and with acceptable energy transfer to the transmitter secondary coil.
The other feature of the tank circuit was to minimise the inductance of the connections and components. The optimum condition is for all the current in the tank circuit to contribute to generating a magnetic field only within the primary coil itself, which maximizes the magnetic field coupling to the secondary coil. In practise magnetic fields are also created around the inductance of the tank circuit connections and components, storing some of the available tank circuit energy, and reducing the magnetic field generated within the primary coil. The inductance of the tank circuit components is kept minimum by keeping connection wires short and made from large many stranded conductors, by using copper busbars, and solid aluminium or copper mounting blocks for larger components. In the circuit diagram of fig. 2 the low inductance parts of the tank circuit extend from the spark gap to the primary coil and are indicated by thicker connecting wires.
Tuning indifference when powering a load
One of the most notable differences between the experiments in part 1 and 2, is that power dissipated in the both the single wire load and the receiver load varies only slightly with large changes to the transmitter and receiver primary tuning capacitor. The transmitter tuning capacitor was varied over the range 20-1200pF which in figs. 3.1 and 3.2 shows very large changes to the frequency spectrum of the TMT system. However when powered from a properly adjusted spark gap generator the bulbs in the single wire transmission medium remain well-lit over much of the tuning range. This is in stark contrast to part 1 where power dissipated or transferred in the various loads were very dependent on the tuning condition of the transmitter and receiver, and to the matching conditions of the VTG to the primary of the transmitter.
In fig. 4.2 we see that currents in the single wire transmission medium are much more impulse-like and consist of many narrow pulse excitations and rapid bursts. The spectral content of this time-domain signal will be very wide with energy distributed over a very broad-bandwidth, and consistent with the properties of the spark gap stimulus in the primary circuit. With such a wide bandwidth of frequencies present at the single wire load we would expect the bulbs to be illuminated irrespective of the tuning in the transmitter primary. Many frequencies are being transferred from the primary to the secondary circuit which is characteristic and typical of the properties of this experiment when driven from a spark gap based generator.
Given the above as a broad comparison with the experiment in part 1, tuning around the upper and lower resonant frequencies of the flat coil transmitter causes a slight increase in brightness for the single wire load, showing that more energy is selectively coupled at these frequencies from the generator as would also be expected from part 1, and from the frequency characteristics measured in figs. 3.1-3.4.
Reduced power in the single wire load and receiver load
The spread of energy over a very wide bandwidth results in less energy being dissipated in both the single wire load and also in the receiver load, as compared the single frequency oscillator experiment in part 1.
1. In the case of the single wire load, the bulbs can still be lit to almost full brightness since all the power from all transferred frequencies is being dissipated in this load. The bulb brightness showing the average power dissipation over many bursts coming from the spark gap generator. At an input power of 300W to the HV supply it was possible to illuminate the single wire load to around two-thirds of its maximum rating, so ~45W. At 500W the load could be illuminated fully to ~60W.
2. In the case of the receiver load, much less power could be coupled into this load even when tuned correctly as a complete TMT system, as shown in figs. 3.3 and 3.4. The single wire load had to be first removed to prevent power dissipation at this load, and then the receiver load could be illuminated to maximum ~0.5 of its total power e.g. about 25W. From the wide-band of frequencies available in the single wire transmission medium only a very narrow range at the resonant frequency of the receiver flat coil are transferred from the single wire to the receiver load. It should however be noted that the receiver bulb loads where illuminated dimly over the entire tuning range of the transmitter primary and the receiver primary. This again shows that a little of that wide bandwidth of energy is coupled to the receiver irrespective of the tuning, again tuning indifference based on the spectral content of the source energy.
In this case the spark gap generator is far from optimal for the transference of electric power, where for the same input power as in part 1, less energy is transferred to the single wire load, and very much less energy can be transferred to the receiver load. This proves to be the case even when the TMT system is optimally tuned as shown in figs. 3.3 and 3.4, and by further comparison with the optimal tuning results in part 1 of this experiment.
Tesla radiant energy and matter phenomena
These phenomena form some of the most interesting and unusual aspects of this TMT experiment using a spark gap generator. Whilst these effects can also be observed in the same experiment using a single frequency oscillator, linear amplifier, or other oscillating source they are much reduced in intensity when compared with a spark gap generator, burst oscillator, pulse generator, or properly designed and operated impulse or displacement generator. The exploration of these phenomena in this experiment is only as an introduction to these effects, and properly requires a much more detailed experimentation and consideration, which will be presented in a subsequent post along with very much magnified phenomena results.
The preliminary phenomena observed in this experiment include:
1. Attracting metals to the surface of an incandescent bulb in the single wire cavity, where the bulb acts as an emitter of radiant energy.
2. Amplification or intensification of a radiant energy event by interaction with a living organism, (human hand).
3. Charging a capacitor with radiant energy by bringing it close to the emitting bulb.
4. Radiant matter pressure waves emanating from the emitting bulb and impacting on a living organism, (human hand).
It should be noted here that improving the uni-directional pulse nature of the generator system by, for example, including components such as 1B22 spark gap modulator tubes in the tank circuit, early magnetic quenching of the spark discharge, or other impulse/pulse/burst generation methods, considerably magnifies the observed phenomena. It is also important to note that these types of phenomena are best observed when a cavity has been established using a resonant transformer, such as a Tesla coil, and where a longitudinal pressure wavefront is established within the cavity, preferably in an LMD type mode, or ideally with direct displacement.
Summary of the results and conclusions so far:
The transference of electric power experiment using the tuned TMT flat coil system has produced considerably different results when powered using a spark gap generator, as compared with the single frequency feedback oscillator in part 1. The key differences and results include the following:
1. Tuning indifference occurs due to the wide spectral bandwidth of the energy transferred from the generator to the final receiver load, and impacting on all parts of the TMT transmission system between these points.
2. Considerably reduced levels of transferred electric power both to the single wire transmission medium load, and the receiver load, for the same nominal input power to the HV supply of 300W. Again this is attributed to the diffuse spectral energy content when a wide bandwidth generator is connected to a narrow bandwidth high-Q TMT transmission system.
3. Tank circuit tuning configurations have shown that a de-tuned primary and secondary resonant frequency in the transmitter primary leads to the best balance between transferred electric power, and stable, consistent, and long-term reliable operating conditions.
4. Radiant energy and matter phenomena have been observed in the experiment, and indicate components and optimizations, including different generator configurations, that will intensify and maximise these unusual observations.
5. Generator configurations and types that improve the impulse/pulse/burst nature of the transferred energy may intensify radiant energy phenomena by generating a more uni-directional pressure wavefront in longitudinal system, which may also provide additional insight into the preliminary investigations into the displacement of electric power.
The results for the transference of electric power in the near-field using a spark gap generator indicate that this form of generator is not well suited for energy transmission in the narrow bandwidth high-Q TMT system. A very large and robust spark gap generator would be required to transfer adequate power from generator to load, with considerable losses at the spark gap, huge electromagnetic interference to the surrounding medium, and invasive and unstable operating conditions. However this form of generator does appear to lend itself to phenomena that arise from the longitudinal pressure wavefront generated in the cavity of a resonant transformer, such as a Tesla coil. As such it is conjectured that this form of generator may be useful in the exploration of displacement, the hidden underlying coherent guiding principle of the undifferentiated electric and magnetic fields of induction.
Click here to continue to the next part, looking at High-Efficiency Transference of Electric Power.
1. Dollard, E. & Lindemann, P. & Brown, T., Tesla’s Longitudinal Electricity, Borderland Sciences Video, 1987.
2. Dollard, E. and Energetic Forum Members, Energetic Forum, 2008 onwards.
In this post we take a preliminary experimental look at the transference of electric power using a cylindrical coil TC and TMT, energised using a linear amplifier generator, and also the high power transfer efficiency that can be achieved in a properly matched system. The setup, tuning, and matching of the linear amplifier is covered in detail in the video experiment where a 500W incandescent lamp can be fully illuminated at power transfer efficiencies over 99% in the close mid-field region. The power is shown to be transferred to the receiver through a single wire between the transmitter and receiver coil through the longitudinal magneto-dielectric mode, and not through transverse electromagnetic radiation or through direct transformer induction. This high-efficiency, very low-loss transference of electric power is possible as the dielectric and magnetic fields of induction are contained around the single wire.
It is also demonstrated that more than 500W of power can be transferred through a single wire no thicker than a human hair, a 40AWG (0.08mm or 80 microns) nickel plated copper wire, where the power transfer efficiency could be measured up to 100% according to the limits of experimental accuracy of the measurement equipment. Power transfer of this order through such a thin wire is again possible as the dielectric and magnetic fields of induction are contained or guided around the single wire. Removal of the single wire from the receiver end prevents any power transfer to the receiver, which shows that when driven by a linear sinusoidal generator, a lower impedance transmission medium, (in this case the single wire), is needed to guide the induction fields between the transmitter and receiver coils. The experiment presented in this post is the preliminary starting point for a more detailed and extensive study of power transfer efficiency over greater distances in the mid-field region with much longer single wires, and in the far-field with a Telluric transmission medium.
The video experiment demonstrates and includes aspects of the following:
1. Linear amplifier generator setup, matching, tuning, and operation to drive a cylindrical TC and TMT system.
2. Measurement and confirmation of the series and parallel modes of resonance for a balanced TC, against the Z11 impedance results, using the generator exciter and an oscilloscope.
3. Transference of electric power from the generator exciter unit, to a single wire transmission medium incandescent lamp load up to 120W.
4. Transference of electric power from the linear amplifier generator to a 500W incandescent lamp load at the TMT receiver output, and subsequently to two parallel 500W lamp loads.
5. Longitudinal magneto-dielectric (LMD) mode measurement through central null with a fluorescent lamp, and mode interference patterns with an ultraviolet lamp.
6. Transference of electric power efficiency measurements up to 99% using an AWG12 single wire between the TX and RX coils.
7. Efficiency measurements up to 100% using an AWG40, 80 micron (0.08mm), 60cm long, single wire between the TX and RX coils.
Video Notes: The maximum calculated power transfer efficiency when using the 12AWG single wire in the video was 99%, and not 99.6% as stated in the video. During the introduction the small signal input impedance characteristics Z11, are displayed for a short period in preparation for the subsequent presented linear amplifier setup. These characteristics can also be viewed in Fig. 3.1 below.

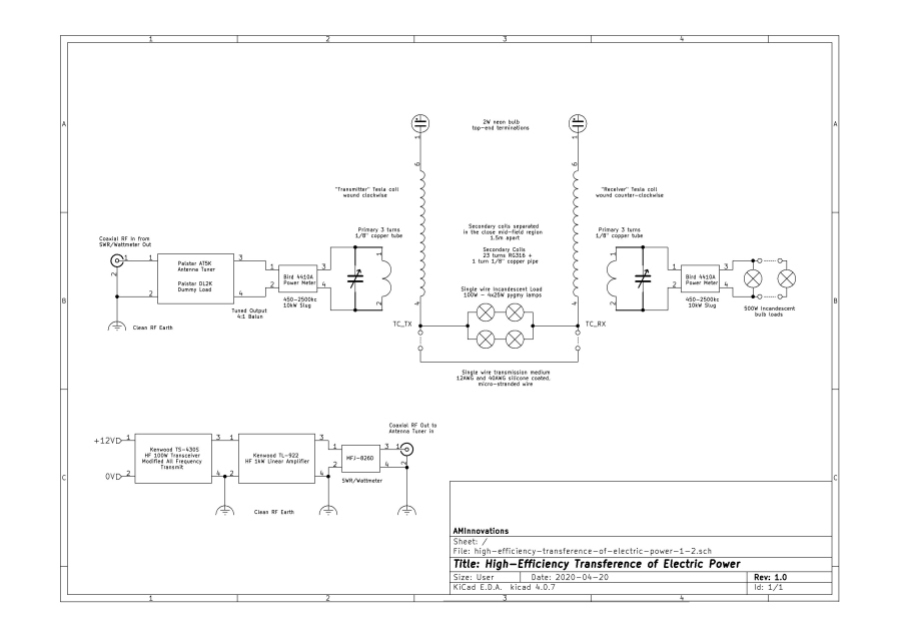

Figure 2 below shows the experimental system circuit diagram, followed by an overview of the linear amplifier generator components. Click here to view the high-resolution version.
Fig. 2.1 The experimental equipment and apparatus used in the video experiment, including the linear amplifier generator, transmit and receive power meters, and the cylindrical coil TMT system with different connection options.
1. The exciter is a Kenwood Trio TS-430S 100W HF amateur radio transceiver. This era of transceiver has digital frequency synthesis, a semiconductor power amplifier, AM and FM modulation, and is easily modified to extend its capabilities. In this case it has been modified to transmit on all frequencies across its tunable range, which makes it into a high-power, up to 120W, bench-top signal generator with modulation capabilities. The transceiver system is not connected to any elevated radiating antennas, and hence will not cause out-of-band interference.
2. The exciter is connected directly to a Kenwood TL-922 1kW linear amplifier which is a vacuum tube based, (dual Eimac 3-500Z), HF power amplifier. This linear amplifier has π-network matching circuits on both input and output. Slightly out of band operation prevents running this linear amplifier at the full 1kW when in the fully matched condition. The output of the linear amplifier is connected through an MFJ-804D digital power and SWR meter to monitor the match at the output of the linear amplifier.
3. The output of the SWR meter is connected to a Palstar AT5K 5kW antenna tuner which handles the impedance transformation from the 50Ω output of the linear amplifier to the ~ 7.5Ω input resistance RS. The AT5K is a T-network matching unit, with input and output continuous variable capacitors, and a continuous variable roller inductor. In balanced output mode a internal 4:1 balun is present at the output of the unit, which further extends the range of possible impedance matching. This unit is capable of tuning a very wide impedance to the 50Ω system impedance, and is required for safe and optimum performance of the linear amplifier when driving TC and TMT systems.
4. The output of the AT5K can be switched to bypass which connects to a Palstar DL2K 2kW 50Ω dummy load which is used to initially tune the output of the linear amplifier for maximum power output at the exciter frequency. When this is completed the AT5K is switched back to balanced tuned output connected to the primary circuit of the transmitter cylindrical coil. Between the output of the AT5K and primary coil is a Bird 4410A Thruline power meter with a 450kc – 2500kc 10kW slug, for measuring the real power actually supplied to the transmitter primary. Between the output of the receiver primary circuit and the 500W incandescent lamp is a second Bird 4410A Thruline power meter with the same rated slug.
In measurements for high-efficiency where the final result is a ratio of the output power to input power, calibration of the key measurement instruments becomes critically important to ensure the highest levels of accuracy and confidence in the measured results. In this case the Bird Thruline power meters at the input and output primary coils were calibrated simultaneously inline with each other, with the actual slugs to be used during the experiment, and on the range that was to be used to make the efficiency measurements. The calibration procedure was as follows:
1. 500W of output power was provided from the linear amplifier generator simultaneously through the two Bird watt meters in series and terminated at the Palstar dummy load. Interconnections were kept to short BNC cables.
2. Both watt meters were first zeroed and then set to scale 10, which for the 10kW 450-2500Kc slug with element factor 100, results in a meter full scale reading of 1000W.
3. With 500W of power provided from the generator to the dummy load both watt meters were adjusted to read the same needle position on the meter scale at 500W. The operation was repeated multiple times with the power being turned-off and reapplied to confirm.
4. The series connection of the meters was then reversed to average out any insertion losses, and step 3 repeated to confirm agreement of the readings, with very slight adjustment to the calibration of each meter for optimal agreement in both steps 3 and 4.
In this way the meters were both calibrated for 500W input power direct comparison on a single range, and with a limit of experimental error of <0.5%. Due to the analogue nature of the meters, readings during the experiment needs to be done carefully and repeatedly in order to minimise errors due to estimation of the needle position when in-between minor graticule marks. It was determined overall that power efficiency measurements can be made by this method within an error limit of ±1%.
Figures 3 below show the key Z11 impedance measurements that relate to different configurations of the experimental apparatus that were used in the video experiment, along with a consideration of their analysis and characteristics relating to the most important phenomena.
Fig. 3.1 The small signal input impedance Z11 for the transmit cylindrical coil with a 100W incandescent load in the single wire extension at the bottom end of the secondary coil. The primary tuning capacitor has been adjusted to Cp = 506.8pF to balance the upper and lower parallel modes.
Fig. 3.2 Here the transmit and receive coils have been joined by a single wire transmission medium at the bottom ends of the secondary coils, and the tuning capacitors in the transmit and receive primary circuits have been adjusted to balance the parallel modes across tthe complete experimental apparatus. There is no load connected to the receiver output.
Fig. 3.3 Here the TMT single-wire transmission medium includes a 100W incandescent lamp load. The load has reduced the Q of the cavity between the transmit and receive coils, reducing the intensity and clarity of the parallel resonant modes across the system, and hence reducing the LMD mode coupling between the transmitter and receiver.
Fig. 3.4 Here the 100W incandescent lamp load has been removed from the single-wire cavity and connected to the output of the receiver. The Q of the system has been reduced considerably, and primary tuning adjusted slightly to rebalance the merged parallel modes.
Fig. 3.5 Here a 500W incandescent lamp load is connected to the output of the receiver. This low resistance load, with inductive component of the filament in the lamp, makes a considerable difference to the charactersitics of the system. The quality factor of the system remains high at the transmitter, but has been suppressed at the receiver, unbalancing the reciprical nature of the TMT cavity.
Fig 3.1. Shows the small signal input impedance Z11 for the starting point of the experiment, (also shown on the video), for the transmit cylindrical coil only with a single wire extension that includes a 100W incandescent load. The impedance characteristics consist of the three key points, as explained in detail in the post Cylindrical Coil Input Impedance – TC and TMT Z11. In this experiment the linear amplifier generator was initially tuned to marker M2 the series mode resonance at 2.19Mc. After confirming the Z11 measurements, using an oscilloscope to maximise the voltage output of the secondary, the generator was set at 2.20Mc for the start of the practical experiments. Markers M1 and M3 are the parallel mode resonant points for the transmit Tesla coil, at 1.89Mc and 2.68Mc respectively. In this case the parallel modes have been balanced between the primary and the secondary, in order to maximise coupling through the series mode to the parallel modes, and hence from the generator to the LMD mode in the cavity formed in the secondary coil and single wire extension. The series resonant mode at M2 is suitable for driving the coil using a linear amplifier as the input impedance is minimum, 12.5Ω @ 2.19Mc, which can easily be matched to the power amplifier output impedance of 50Ω, via the Palstar antenna tuner with a 4:1 output balun.
It is interesting to note from the video experiment that the oscilloscope confirmation and measurement of the resonant modes of the Tesla coil is strongly dependent on the matching network used between the generator and the primary of the coil. In the simple case where the exciter was connected to the primary through direct bypass of the antenna tuner, (direct drive), the fundamental series resonant mode could be measured very clearly at 2.14Mc, but the parallel modes could not be identified at all in the measurement. This method is commonly used to measure the Tesla coil series resonant frequency, but completely masks the parallel modes from measurement, leading to an incomplete and ultimately inaccurate characterisation of the properties of a Tesla coil. It should also be noted that the measured maximum voltage peak on the oscilloscope at 2.14Mc does not completely correspond to that measured in the Z11 characteristics of 2.19Mc. In this case where no consideration of input impedance matching has been taken into account the basic oscilloscope measurement yields incomplete and inaccurate measurement results, and whilst gives a close estimate of the best frequency point to drive the Tesla coil, does no yield the optimum frequency and conditions for maximum transference of electric power.
When the same measurement is repeated but with a tuned matching network between the exciter and primary coil, ( in this case the balanced and tuned T-network in the Palstar), the oscilloscope measurement closely matches the Z11 characteristics. Both parallel modes and the series mode can be measured accurately at the correct frequencies, and the initial starting point was again set to 2.20Mc. The difference in the two measurements is a clear example of why it is important to carefully match the output impedance of the generator to the input impedance of the Tesla coil, and this is even before we consider the optimum and maximum transfer of electric power. To maximise power transfer and obtain the highest efficiencies it is crucial to minimise power reflected from the primary circuit to the generator.
Fig 3.2. Here the transmitter and receiver coils are coupled together with a single-wire transmission medium to form a TMT system. No load is placed in the single wire, and no load is attached to the output of the receiver primary. This represents the highest quality factor, unloaded, characteristics of the system, and combines four parallel modes (M1, M3, M5, and M7), and three series modes (M2, M4, M6) together. The TMT system has been carefully balanced using the primary tuning capacitor in the both the transmitter and receiver to match the impedance of the parallel modes across the system. Balancing of the parallel modes in this way appears to contribute significantly to maximising the LMD mode in the cavity through coupling maximum power between the TEM and LMD modes between the primary and secondary coils in both the transmitter and receiver. A more detailed analysis of this TMT system has already been presented in post Cylindrical Coil Input Impedance – TC and TMT Z11 – Fig. 2.1.
It should be noted that the fundamental series resonant mode at M4 has remained constant at 2.20Mc, and for the type of linear amplifier generator being using in this experiment, is the best frequency point to drive the TMT system. At M4 the input impedance is at its minimum and is purely resistive at 7.85Ω, and is well within the matching range of the Palstar antenna tuner with a 4:1 balun at the output. Tuning to drive at M4 is also the most stable part of the Z11 characteristics, which is most determined by the the reciprocal wire lengths of the secondary coils. It is possible to also drive the TMT system using this generator at series mode points M2 and M6. Whilst this will preferentially couple energy into different aspects of the parallel longitudinal modes, the characteristics of these points in impedance are highly dependent on the primary tuning of both coils, and the loading conditions in any part of the TMT system, in the single-wire, at the output of the receiver primary, or even in proximity to other lower impedance structures. Driving the system at unstable positions M2 and M6 would require a lot of continuous tuning adjustments, and inevitably having to run at a higher SWR during experimental operation. For experiments across the characteristics of the parallel modes it is recommended to use a series feedback oscillator which is covered in detail in the second section of post Cylindrical Coil Input Impedance – TC and TMT Z11.
Fig 3.3. Here the TMT system of the previous figure has had a 100W incandescent lamp load added in the single-wire cavity between the transmitter and receiver. The characteristics remain essentially very similar, although the Q of the system is reduced significantly by the resistive component in the cavity. The fundamental series resonant mode at M4 has only shifted down in frequency by ~10kc to 2.19Mc, however the input impedance of the system has now increased to 19.1Ω based on the transformed down additional resistance of the 100W load in the secondary cavity. The tuning of the primary capacitors has been adjusted to maintain a balanced condition between the parallel modes. The biggest impact of adding a load in the cavity is to damp-down the parallel modes, and hence reduce the purity of the LMD mode formed in the cavity of the TMT system.
For clarity, the cavity extends between the top-end of the transmitter secondary, through the single wire transmission medium and load, and up to the top-end of the receiver cavity. Power is transferred from the generator through the primary circuit, and to the secondary primarily in the series TEM mode, which is further coupled to the parallel modes in the both the primary and secondary coils, and hence into the LMD mode across the cavity. Power is coupled out at the receiver through the reverse process from the LMD mode to the receiver parallel modes, and into the series TEM mode in the primary circuit. It is a condition of an LMD coupled TMT system that the frequency of the LMD mode < TEM mode. The LMD mode can be maximised by maximising the parallel modes in the coils which includes:
1. Specific and careful arrangement of the coil geometry (e.g. a balanced cylindrical coil), windings number, ratio and spacing, and coil materials.
2. Tuning of the parallel modes to balance the characteristics between the primary and secondary coils in both the transmitter and receiver.
3. Impedance transformations, characteristics, and loading within the single-wire transmission medium.
Fig 3.4. Shows the effect of moving the 100W lamp load from the single-wire to the output of the primary circuit of the receiver. The Q of the system remains reduced, and the parallel modes of the receiver coil have been almost completely damped-down (suppressed), so that they merge into the parallel modes of the transmitter, and appearing as only two parallel modes at M1 and M3. With slight transmitter primary capacitor tuning the merged parallel modes of the receiver can be revealed as slight distortions to the peak shapes at M1 and M3. The fundamental series resonant mode at M2 remains constant at 2.20Mc as the wire length in the secondary coils of the TMT system cavity has not changed, but the input resistance has risen significantly to 59.8Ω, as the resistive load of the incandescent lamps is transformed across the TMT system from receiver back to transmitter input. In this case the 59.8Ω input resistance at M2 is closer to the system impedance of 50Ω of the linear amplifier generator.
It should be noted that this represents another way to match the system impedance of the generator to the input of the TMT system, by arranging a suitable resistance load at the output of the receiver. The impedance transformation across the complex transmission line of the TMT apparatus, ensures a good TEM match at the input to the primary. The disadvantage of tuning in this way is that the resistive load reduces the Q of the system, and damps-down the parallel modes of the coils, which ultimately reduces the efficiency of the TMT system for the transference of electric power.
Fig 3.5. Shows the dramatic effect of connecting a 500W incandescent lamp at the output of the receiver, which has significantly unbalanced the TMT cavity, and suppressed the free-resonant characteristics of the receiver, through the low resistance and inductive impedance of the 500W lamp. The large collapse of the receiver characteristics has shifted the transmitter parallel modes M1 and M5 closer together, the lower parallel mode of the receiver at M3 is still present but very small, and the upper parallel mode of the receiver (from the receiver primary coil) is no-longer present. The fundamental series resonant modes are shifted as well, with the transmitter moving down to 2.02Mc, and the receiver moving up to 2.30Mc. The best driving point for the generator is now at M2 at 2.02Mc and with a input resistance of 24.7Ω, which is easily transformed and matched by adjustment of the antenna tuner. M4 the series mode for the receiver could also be used as the driven point, although it is likely that less power will be coupled through the parallel modes at this point and hence into the LMD mode, due to the collapse of these modes from the high loading on the receiver coil.
It should be noted here that despite the imbalance of the impedance characteristics, very high-efficiency power transfer between the generator and the load can still be accomplished through the coupling between TEM and LMD modes in the secondary coils, and through the strong LMD mode maintained in the low impedance cavity of the single-wire transmission medium. In this arrangement with a large, low impedance load at the receiver transference of electric power efficiencies have been measured > 99.9% in hair-line thickness (0.08mm) single-wire cavities.
Figures 4 below show highlights from the video experiment, and also greater clarity on some of the key power measurements taken during the experiment, including high-efficiency power transfer results at > 99%.
Fig. 4.1 High-efficiency transference of electric power in a cylindrical TMT system in the close mid-field region, via a 40AWG 0.08mm single-wire transmission medium, and fully illuminating a 500W incandescent lamp at the receiver output.
Fig. 4.2 The 40AWG 0.08mm single wire transmission medium is 60cm long and is the same thickness as a human hair. The single wire acts as a guide for the LMD mode that is established in the cavity of the TMT system.
Fig. 4.3 The differentiated dielectric and magnetic fields of induction in the LMD mode are guided around the outside of the single wire and span across the cavity between the transmitter and receiver coil. The LMD mode is pumped via coupling between the parallel and series modes of the Tesla coils.
Fig. 4.4 The linear amplifier generator and TMT system were optimally tuned to drive the system stably at 2.08Mc, and the transmitter Bird Thruline power meter reads 520W of power being supplied to the transmitter primary circuit.
Fig. 4.5 The receiver Bird Thruline power meter reads 515W of power being extracted from the receiver primary circuit and fully illuminating the 500W incandescent lamp load.
Fig. 4.6 Here the transmitter and receiver bird meters of the previous two figures have been combined into a single image for clarity. The 520W in the transmitter to 515W in the receiver yields a transfer efficency, via a 40AWG 0.08mm single wire transmission medium, of 99%.
Fig. 4.7 The linear amplifier generator is carefully tuned to the series resonant mode of the TMT system using the antenna tuner. Here the reflected power from the experiment has been reduced to < 1W at over 600W output power, yielding an effective SWR at the power amplifer output of ~ 1.0.
The experiments show the seemingly amazing result of transferring stably 500W of power at very high-efficiency, (peak 800W measured in the experiment, but with lower efficiency), via a single wire 60cm long and 0.08mm thick (40AWG), and comparable to the thickness of a human hair. In a standard electric circuit we would expect to transfer this magnitude of power between the generator and the load using a suitably rated twin-wire arrangement. In the TEM mode the dielectric and magnetic fields of induction establish an alternating potential across the load and an alternating current flowing through the load. As the impedance of the incandescent load is dominated by the resistive part, almost all of the power is dissipated in the lamp element as heat and light, and with resistive and inductive losses in the circuit cabling and connections.
This is in fact what occurs in the receiver primary circuit which is a conventional twin-wire circuit. The receiver Tesla coil acts a step-down transformer and energy is coupled from the secondary coil resonant modes, (both series and parallel), to the primary coil. The dielectric and magnetic fields of induction coupled through to the primary establish in a TEM mode and hence setup alternating potential across the load and an alternating current flowing through the load. The power in the primary receiver circuit can be measured accurately using a standard RF power meter, (such as the Bird 4410A used here), in a standard twin-wire circuit.
There is an equivalent and reciprocal process in the generator primary circuit. The linear amplifier supplies RF power through a standard power meter into the twin-wire primary circuit at the transmitter. The dielectric and magnetic fields of induction established by the generator in the TEM mode, setup an alternating potential across the primary coil and an alternating current flowing through the primary coil. Power is coupled to the secondary coil through the series and parallel resonant modes of the transmitter Tesla coil. Power efficiency can be measured accurately in this system because the transmitter and receiver power measurements both take place in standard twin-wire circuits that are equivalent in impedance using standard twin-wire RF power meters. The primary circuits of both the transmitter and receiver are suitably arranged to minimise resistive and parasitic inductive losses, using good RF connections and cables.
In the cavity established between the transmitter and receiver secondary coils and through the single-wire transmission medium it is conjectured that very high-efficiency transference of electric power through a 60cm 40AWG 0.08mm single wire is possible due to the LMD mode being established across the cavity, where the dielectric and magnetic fields of induction form a longitudinal wavefront that traverses the cavity establishing a standing wave with central null point, and a varying (travelling) voltage and current phase relationship along the cavity. This varying voltage and current relationship in the single-wire cavity can be visualised using the ultraviolet lamp used in the experiment where a travelling interference pattern is setup in the lamp. This interference pattern results from the longitudinal wavefront traversing backwards and forwards between the two secondary top-loads guided by the single wire in-between. In this way the longitudinal cavity extends from the top-load of the transmitter secondary through to the base, into the single-wire, and into the base of the receiver secondary up to the top-load.
When the tuning of the cavity is adjusted through the parallel modes the interference pattern can be made stationary as demonstrated in the video, and represents the optimal tuning position for the LMD mode in the cavity, it is also the point where power transfer efficiency is highest, and most power can be transferred through the cavity between the transmitter and receiver. This is also the point where a diffuse fluorescent lamp will show a null point in the electrical centre point of the cavity. Either side of this tuning the interference pattern will be seen to move towards the receiver and transmitter eventually starting to collapse towards either end of the single wire medium as the LMD mode collapses in the cavity. Coupling to the LMD mode in the secondary coil is dependent on the parallel modes in the coil and these can be adjusted very accurately using the primary tuning capacitors in the transmitter and receiver primary circuits. The LMD mode appears optimised and maximum when the primary and secondary parallel modes are balanced using the primary tuning capacitors, as shown in figures 3.
In summary, it is conjectured here that very high-efficiency transference of electric power is directly possible because of the LMD mode established in a single wire cavity, where the dielectric and magnetic fields of induction are guided around the low impedance single-wire conductor. The single-wire acts in this case like it were a monopole waveguide which would only be possible where the LM and LD modes are spatially in phase, but temporally out of phase, the condition that I conjecture is necessary for the LMD mode to form in the cavity. Real power can be transferred and dissipated at the receiver load via the single-wire transmission medium, because both the dielectric and magnetic fields of induction are guided across the cavity, and where both of these induction fields are necessary to transfer power over the cavity distance. It does not appear possible that transference of electric power can occur here through dielectric field induction alone between the transmitter and receiver coil, but rather that both the magnetic and dielectric induction fields extend across the system by virtue of LMD wavefront in the cavity, and indeed if the single-wire is disconnected from either end (guiding cavity terminated), then no power can be transferred from source to load.
All this said, it now makes sense and can be understood how 500W of power can be transferred from source to load in a TMT system where part of the cavity is a single-wire conductor the thickness of a human air. This ultra-thin section is still only a part of the guiding conductor in the cavity, and appears as yet an even more effective guide to the dielectric and magnetic fields of induction in the configuration of the LMD mode. It is conjectured here from the experiments and measurements so far, that the efficiency of transference of electric power in an LMD transmission system appears to increase as the single-wire transmission medium is reduced in conductor volume per unit length, to the boundary condition limit of the skin depth for the material, in this case ~ 0.046mm (46µm) in copper at 2Mc, where the efficiency would reach a maximum before falling-off again.
Fig. 4.6. shows the comparison of the transmitter and receiver power measured during sustained transference of 500W of power between the source and load, where the wattmeter gauges have been combined from Figs. 4.4 and 4.5 into a single image. The transmitter meter on the left shows 520W of power, and the receiver on the right 515W of power. The calculated transference of electric power efficiency in this case is 99% ±1%, and could be measured consistently during the period of operation. Other measurements of power transfer efficiency were taken at various positions and states of tune in the video experiment and consistently in the range 95% – 100%. 100% power efficiency was measured initially when using the 0.08mm single-wire conductor but dropped to a constant 99% after further tuning adjustments.
Summary of the results and conclusions so far
In this post we have experimentally observed high-efficiency transference of electric power sustained at 99%, and maximum 100%, with a estimated error of ±1%. The experiments were conducted in the close mid-field region in a TMT system driven with a linear amplifier generator, and using high power incandescent lamp loads in the receiver primary circuit. From the experimental results and measurements presented the following observations, considerations and conjectures are made:
1. The high-efficiency transference of electric power across a 0.08mm single-wire transmission medium is possible because of the Longitudinal magneto-dielectric (LMD) mode established in the cavity between the transmitter and receiver secondary coils.
2. The transfer of power in the LMD mode across the cavity results in the dielectric and magnetic induction fields being guided around the single-wire like a monopole waveguide. Power does not appear to be coupled from transmitter to receiver by dielectric induction alone.
3. The LM and LD modes are spatially coherent (in-phase) and temporally out-of-phase, combining to form the LMD mode that belongs to longitudinal transference phenomena.
4. The LMD mode shows voltages and currents that can be measured along the wire with changing phase relationship, and is considered in more detail in Transferece of Electric Power – Part 1.
5. The LMD mode forms as a standing wave in the cavity with a null point at the centre of the reciprocal cavity which can be observed using a fluorescent lamp.
6. The LMD mode can be observed through the interference pattern generated in a ultraviolet lamp placed close to the single wire cavity, from the longitudinal wavefront traversing backward and forward across the cavity. Tuning of the cavity using the parallel resonant modes in the transmitter and receiver varies the direction of interference, and is stationary at the optimum point.
7. The efficiency of transference of electric power in an LMD transmission system appears to increase as the single-wire transmission medium is reduced in conductor volume per unit length, to the boundary condition limit of the skin depth for the material.
8. The optimal efficiency transference of electric power requires optimal matching of the generator to the transmitter coil at the fundamental series resonant mode in order to transfer as much power as possible into the secondary cavity, correct tuning of the LMD mode through coil geometry and parallel mode tuning, and optimal matching between the receiver coil and the load to extract the maximum power.
This post has explored aspects of the TEM and LMD modes in the high-efficiency transference of electric power, including generator matching, tuning, and observation and measurement of various phenomena associated with TMT operation using a linear amplifier generator. The experiments conducted here are in the close mid-field region and form an encouraging starting point to extend the distance between the transmitter and receiver. Further work in progress, and to be subsequently reported, includes transference of electric power using longer single-wires where the transmitter and receiver are placed in different rooms, and buildings, and comparison over the same distance with ground connected transmission, and full Telluric transmission for far-field experiments.
Click here to continue to the next part, looking at High-Efficiency Transference of Electric Power – 11m Single Wire.
1. A & P Electronic Media, AMInnovations by Adrian Marsh, 2019, EMediaPress
In this second part on high efficiency transference of electric power, we take a look at the characteristics and power efficiency of a cylindrical coil TMT system where the transmitter and receiver coils are spaced further apart in the mid-field region. In this experiment a single wire transmission medium 11m long is used to separate the coils into different rooms at the laboratory, and a remote camera is used to observe the power at the receiver load measured by an RF wattmeter. Transference of electric power over 11m, and the characteristics of a TMT system coupled by the LMD mode at this distance, is shown to be remarkably different from the close mid-field region, and requires a very different setup and configuration of the experimental apparatus in order to optimise the efficiency of power transfer up to 96%.
In the close mid-field region with a 2m single-wire in the previous experiment on High-Efficiency Transference of Electric Power, the maximum transfer efficiency was achieved when the TMT system was configured, tuned, and operated at the point where the parallel modes were balanced, and the generator was optimally impedance matched to the system. It was conjectured that this balance contributes to maximising the power transferred from the generator to the twin-wire primary circuit TEM mode, to the single-wire LMD mode within the cavity formed between the transmitter and receiver secondary coils, and back to the twin-wire primary circuit TEM mode to the load.
In the mid-field region with an 11m single-wire we will see that this balanced mode setup leads to a maximum efficiency of ~40%. It is demonstrated that it is necessary to significantly mismatch the balance between the transmitter and receiver coils in order to get the LMD mode to extend across the single-wire transmission medium and restore transfer efficiency to over 90%. Transmitter and receiver primary circuit mismatch is mainly used to restore the transfer efficiency, along with fine adjustment through generator to TMT system TEM mismatch, measured at a range of Standing Wave Ratio (SWR) of 1, π/2, φ (the golden ratio), and 2.
The video experiment demonstrates and includes aspects of the following:
1. Small signal ac input impedance Z11 for a cylindrical coil TMT system in the mid-field region, and connected via an 11m 12AWG single wire transmission medium.
2. Z11 balanced parallel mode impedance measurements, for a reciprocal TMT configuration with 3 primary turns and matched primary capacitor tuning.
3. Z11 unbalanced parallel mode impedance measurements, for a non-reciprocal TMT configuration with 4 transmitter primary turns, 2 receiver primary turns, and mismatched capacitor tuning.
4. Transference of electric power from the linear amplifier generator to a 500W incandescent lamp load at the TMT receiver output via the reciprocal TMT configuration, and with a measured efficiency around 40%.
5. Transference of electric power to a 500W incandescent lamp load at the TMT receiver output via the non-reciprocal TMT configuration, and with a measured efficiency of up to 96%.
6. Demonstration of the high tension and associated discharge that can be drawn from the high-end of the receiver secondary coil, via the 11m single wire.
7. Transference of electric power efficiency measurements up to 96% (90% average) at 400W dissipated load power (peak 500W), in the 160m amateur radio band at 2.01Mc, and via an AWG12 single wire 11m long between the TX and RX coils.
Video Notes: The receiver power meter reading is shown on the inset video in the top right corner. For clear viewing and reading of the inset meter readings, and the VNWA software measurements, “720p” or “1080p” video quality is recommended, and may need to be selected manually from the settings icon once playback has started.
The experimental system circuit diagram, followed by an overview of the linear amplifier generator components is available here.
Figures 1 below show the key small signal input impedance characteristics Z11 presented in the video experiment, along with a more detailed analysis as to their impact on the observed and measured experimental results.
Fig. 1.1 The input impedance Z11 at the transmitter primary balanced with the receiver, and showing the parallel modes for both tansmitter and receiver coils. Coupling across the 11m single wire is lower, and the parallel mode split at the upper and lower points is narrow.
Fig. 1.2 With the 500W incandescent bulb load at the receiver primary the Q at the receiver is very significantly reduced leaving only the balanced parallel modes of the transmitter. The receiver characteristics have been shifted and reduced at marker M3.
Fig. 1.3 The TMT system has been reconfigured to yield power transfer efficiencies > 90%, the parallel modes are dominated by the transmitter primary. The receiver series resonant circuit of the secondary coil at M4 remains shifted away from that of the transmitter at M3.
Fig. 1.4 Shows a zoom of the lower parallel mode from the previous figure, which reveals a split peak showing a coupling between the primary parallel mode of the transmitter and the primary parallel mode at the receiver. The coupling is very low as the split is very narrow.
Fig 1.1. Shows the balanced and reciprocal input impedance for the cylindrical TMT system with 11m single wire transmission medium. The parallel modes, at markers M1, M2, M4, and M5, are balanced in the normal way by adjusting the primary tuning capacitors at both the transmitter and the receiver. The fundamental series resonant frequency M3 @ 2.02Mc has a series resistance RS = 11.3Ω, and is the primary drive point for the linear amplifier generator used in the experiment, with fine tuning around this point established at 2.01Mc as the optimum point. The parallel modes, one from the primary and one from the secondary, for both the transmitter and receiver coils are balanced, and show the frequency splitting that occurs when resonant modes of a very similar frequency are coupled together.
This form of impedance characteristic has been very well covered before in many posts on the website, and is discussed in detail in Cylindrical Coil Input Impedance – TC and TMT Z11. Previously these characteristics have been studied in the close mid-field region, typically with a single wire in the region of 1.5-2m long, or at least 2-3 times the diameter of the secondary coil, (0.5m in the case of the cylindrical TC). In this region the coupling between the transmitter and receiver coils, via the single wire transmission medium has been shown to be significant and the parallel modes split up to 200kc apart in frequency, as can be seen here. Within the split parallel regions there is a well defined and distinctive phase change from the extended series mode. The extended series modes, both upper and lower, can also be used as drive points for a linear amplifier generator, although the series resistance at these points is higher than the fundamental series mode, and ultimately will couple less total power from the generator through the TMT system.
With the single wire now extended to 11m in the mid-field region it can be clearly seen in this impedance scan that the coupling between the parallel modes of the transmitter and receiver has reduced, the frequency split is less at 30kc, and the extended series mode phase change is only just defined between markers M1-M2 and M4-M5. The fundamental series mode remains dominant at M3 and is the optimum drive point for linear amplifier generator. Overall the transmitter and receiver coils are coupled together by the single wire transmission medium in the TEM mode, but the coupling is reduced from the close mid-field region, and the additional impedance of the longer single wire is transformed back through into the transmitter primary and reflected in the increased series mode resistance at M3, RS = 11.3Ω.
Fig 1.2. Shows the effect of adding a 500W incandescent lamp load at the receiver primary coil output. The transmitter primary tuning capacitor CPTX has been adjusted from 663pF to 711pF in order to balance the transmitter parallel modes. The receiver primary tuning capacitor CPRX remains the same at 793pF. The resistive and inductive loading presented by the high-power incandescent lamp at the receiver has significantly changed the operating characteristics of the TMT system from a well balanced cavity, to a strongly unbalanced cavity, at least in terms of the TEM input impedance Z11.
The parallel modes of the receiver coil have been almost entirely suppressed with only a very slight presence at M3, and the overall resonant circuit properties of the receiver distorted and skewed away from the reciprocal coil characteristics of the unloaded receiver TC, to the characteristic shown at M3. It is important to note that this huge imbalance in the receiver end of the cavity in both the TEM mode, and I would conjecture the LMD mode due to the definite and distinctive change in the parallel modes, leads to a setup in this experiment where the transmitter end also needs to be unbalanced in order to reestablish the maximum efficiency in the transference of electric power. It is conjectured and discussed later that the setup change to the transmitter establishes a balance again in the LMD mode in the cavity when the total effect of the receiver and the longer single wire are taken into account together.
The fundamental series resonant mode has shifted down very slightly to 2.01Mc, RS = 13Ω, which was found to be the optimum drive point for the linear amplifier generator during the tuning and setup part of the experiment prior to the video experiment itself. The balanced reciprocal setup shown in figures 1.1 on this page, and 2.1 here , which was so effective in the close mid-field region, is shown to yield a maximum power transfer efficiency of now more than 35-45%. It is clear that the coupling introduced by the single-wire transmission medium and the impedance that this presents to both the TEM and LMD mode is critically important in both the setup and operation of a TMT system over distance.
Fig 1.3. Here the setup of the transmitter and receiver has been changed from that of the balanced reciprocal cavity condition, which yields power transfer efficiencies no higher than 35-45%, to the seemingly mismatched characteristic that yields measured transfer efficiencies up to 96% in the experiment. This setup requires the transmitter primary turns to be increased from 3 to 4, and a significant increase in the primary tuning capacitor CPTX = 1206pF. In correspondence, the setup of the receiver primary turns is also decreased from 3 to 2, and the primary tuning capacitor is significantly reduced to CPRX = 146pF. In this setup the input impedance Z11 for the TEM mode appears highly imbalanced, however for the LMD mode it is conjectured that a strong coupling and balance is re-established.
The fundamental series resonance at M3 has again only shifted very slightly in frequency to 2.0Mc, as the wire length of the experiment, the biggest contributor to this mode, remains constant, and with an increased series resistance RS = 22.8Ω. This still represents the best generator drive point for this experiment, with the lowest series resistance, and maximum coupling to the both the series and parallel modes that are active in this configuration. Transmitter parallel modes at M1, M2, and heavily suppressed around M3 and M4, are shifted quite considerably by the primary tuning capacitor mismatch. The dominant parallel modes, and hence conjectured to contribute most strongly to the LMD mode in the cavity, are now at M1 and M2 and involve both the transmitter and receiver, which will become apparent in the next figure. It should be noted that this figure is on a vertical magnitude of impedance scale of 4kΩ, whereas the previous figures where set to 1.5kΩ. This emphasises the very strong lower parallel modes and suggests that the transmitter pump action, from the generator to the LMD mode in the cavity, has been preferentially increased at this lower frequency of 1.2Mc.
The reduction in the primary setup at the receiver appears to have loosened the coupling between the primary and secondary coils of the receiver, which in turn has increased the Q of the free resonance in the secondary coil, increasing the phase change at M3, and emphasising the receiver characteristics transformed across the single wire cavity back to the transmitter. In short it appears like the LMD pump action into the cavity has been increased, whilst the Q of the receiver has also been increased. It is conjectured here that this combination of effects re-establish a balanced condition for the LMD mode, and hence a low impedance path for this mode across the cavity. With the LMD mode established across the cavity the efficiency of power transfer is pushed right back up to 95+%. Losses in the TEM mode are clearly increased with the longer single wire, but it is conjectured this is not the case for the LMD mode which is coherent spatially but not temporally over the entire cavity.
The split in frequency between the fundamental series mode at M3 and the upper extended series mode at M4 is now only 80kc, which is a very different condition than that which occurs in the balanced non-loaded mode. This close correspondence between these series two modes at the transmitter and receiver suggests part of the mechanism that allows very high-efficiency transference of electric power, where power is coupled from the primary to the secondary and hence into series modes to parallel modes, and then back through parallel modes to series modes at the receiver, a transformation across the TMT system from TEM to LMD and back to TEM mode in the load. Ultimately real power is passed from the generator through to the load which requires the TEM mode in both primary circuits, and the LMD mode as a result of the combined LM and LD modes across the cavity of the TMT.
Fig 1.4. Here we see a zoom of the peak of the dominant parallel mode from the previous figure at M1 and M2. Very interestingly we see that this peak is actually split into two peaks, suggesting two parallel modes that are dominant in both the transmitter and receiver but very weakly coupled. This now sets up the condition that we have two parallel modes separated by only ~ 1kc, and two series modes separated by only 80kc, from both the transmitter and receiver. I conjecture that it is this combination of series and parallel modes at each end of the TMT that makes it possible to yield very high-efficiency transference of electric power in this TMT system with a longer single-wire.
So what appears to be a loaded and unbalanced setup actually yields a TMT system that is balanced and matched for both the TEM and LMD modes combined. From a TEM perspective of the input impedance Z11 this appears to be heavily loaded and biased towards the transmitter, but on closer inspection and analysis suggests a configuration that balances the system between transmitter and receiver for maximum efficiency, minimum impedance for power transfer, and optimal conditions for the 500W incandescent load used in the experiment. Fine tuning of this configuration was further demonstrated by introducing a non-zero reflection coefficient from the transmitter primary circuit to the generator. This was accomplished by progressive adjustment of the antenna tuner away from the optimum SWR of 1.0, increasing up to 2.0. A standing wave ratio of π/2 to φ (the golden ratio) were found to increase the efficiency slightly making the difference between a stable 90% efficiency up to a maximum in this experiment of 96%.
It is suggested here that the TEM mismatch at the transmitter primary circuit is a method of fine tuning the balance of the circuit for the TEM and LMD modes combined. The balance between these two modes, and hence the energy coupled into and between these modes, and across the complete TMT system and cavity, appears to have the most impact on the power transfer efficiency.
Summary of the results and conclusions so far
In this post we have experimentally observed high-efficiency transference of electric power sustained at 90%, and with fine tuning and adjustment up to a maximum of 96% with an estimated error of ±1%. The power was transferred using a cylindrical coil based TMT system, where the transmitter and receiver are coupled by an 11m single wire transmission medium. 400W of power could be stably passed from the linear amplifier generator to the incandescent load at maximum transfer efficiency (90-96%), and up to 500W was tested at a reduced efficiency ~85%. From the experimental results and measurements presented the following observations, considerations and conjectures are made:
1. The “ideal” balanced reciprocal cavity setup, optimal in the close mid-field region, is not efficient for optimum power transfer in the more distant mid-field region, and most specifically when driving a heavy load at the receiver output.
2. An unbalanced TEM setup at the transmitter and receiver coil appears to restore the overall combined balance of the TEM and LMD modes across the entire TMT system restoring the high-efficiency power transfer characteristics in the mid-field region.
3. The unbalanced TEM setup appears to increase the LMD pump action into the cavity, whilst the Q of the receiver has also been increased by loosening the primary receiver coupling. It is conjectured here that this combination of effects re-establish a balanced condition for the LMD mode, and hence a low impedance path for this mode across the cavity.
4. The Z11 impedance characteristics in the unbalanced setup and when loaded at the receiver with a 500W incandescent lamp show a fine split between the series modes and the dominant lower parallel modes, which appears to show the transmitter and receiver coupled together in both the TEM and LMD modes
5. This close correspondence between these modes at the transmitter and receiver suggests part of the mechanism that allows very high-efficiency transference of electric power, where power is coupled from the primary to the secondary and hence into series modes to parallel modes, and then back through parallel modes to series modes at the receiver, a transformation across the TMT system from TEM to LMD and back to TEM mode at the load.
6. The maximum transfer efficiency could be fine tuned by mismatching the generator to the primary transmitter circuit and hence creating a reflection coefficient in the transmitter part of the system. SWRs in the region 1 to 2 were tested, with the best results around π/2 to φ (the golden ratio).
7. It is suggested, but needs considerable further work to develop, that the impedance presented by the single-wire transmission medium to the LMD mode is not the same as that presented to the TEM mode, and where a narrow single wire to the limit of the skin depth would appear as a high impedance at the driving frequency to the TEM modes, this is not the case for the LMD modes. For the LMD modes (LM and LD) the single-wire appears as a low impedance monopole waveguide which is spatially coherent over the extent of the cavity.
This experiment has opened up a range of interesting questions that need further consideration and considerable investigation to answer and progress, and most particularly from conclusion 7; to understand and establish in more detail the impedance presented by a single-wire transmission medium to the LMD mode generated in the cavity. It would also be interesting to compare the single-wire to a Telluric transmission medium, which will be the focus of the next experiment in this series. This experiment will look at transference of electric power over a 40m single-wire where the transmitter and receiver are in separate buildings of the lab, and also to compare the measured performance to a Telluric connection between the two via a basic ground system at each end.
Click here to continue to the next part, looking at Transference of Electric Power – Single Wire vs Telluric.
1. Tesla, N., Colorado Springs Notes 1899-1900, Nikola Tesla Museum Beograd, 1978.
2. A & P Electronic Media, AMInnovations by Adrian Marsh, 2019, EMediaPress
3. Dollard, E. and Energetic Forum Members, Energetic Forum, 2008 onwards.
